Tailgate Open Switch

  1. Disconnect the negative (-) battery terminal.
  2. Remove the back view camera assembly.

    (Refer to Advanced Driver Assistance System (ADAS) - "REMOVAL ")

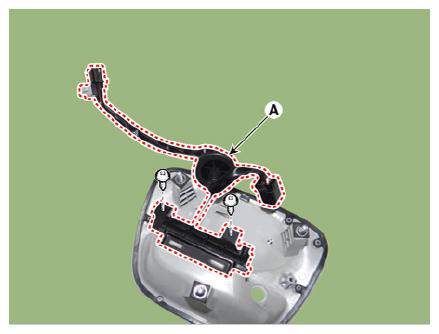

  3. Remove the tailgate open switch assembly (A) after loosening the mounting screws.
    G13706524Courtesy of KIA MOTORS AMERICA, INC.
