Repair Procedures: Inspection

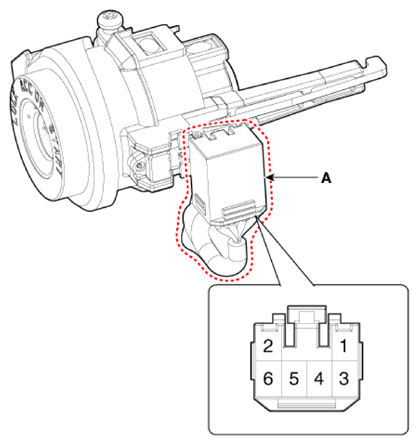

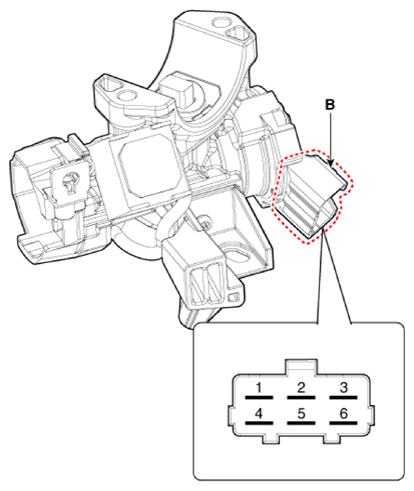

  1. Disconnect the key warning switch connector (A) and ignition switch connector (B) from the steering column.
    G13706154Courtesy of HYUNDAI MOTOR AMERICA
    G13706155Courtesy of HYUNDAI MOTOR AMERICA

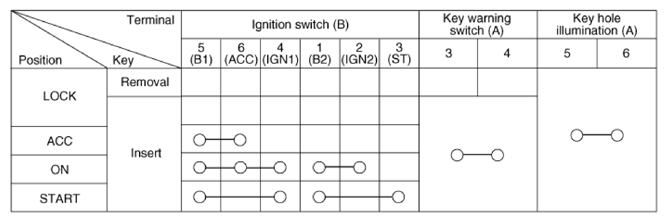

  2. Check for continuity between the terminals.
  3. If continuity is not specified, replace the switch.
    G13706156Courtesy of HYUNDAI MOTOR AMERICA
