Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the crash pad lower panel.

    (Refer to Body - "CRASH PAD LOWER PANEL ")

  3. Remove the steering column upper and lower shroud panel.

    (Refer to Body - "STEERING COLUMN SHROUD PANEL ")

  4. Remove the multifunction switch.

    (Refer to Body Electrical System - "MULTIFUNCTION SWITCH ")

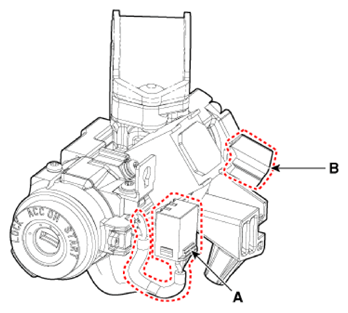

  5. Remove the ignition switch connector (A) and key warning/immobilizer connector (B).
    G13706157Courtesy of HYUNDAI MOTOR AMERICA

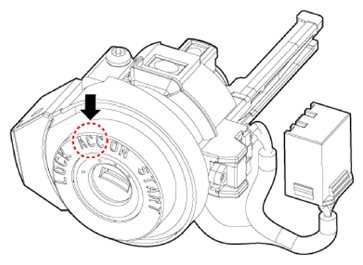

  6. Insert key and turn it to ACC position.
    G13706158Courtesy of HYUNDAI MOTOR AMERICA

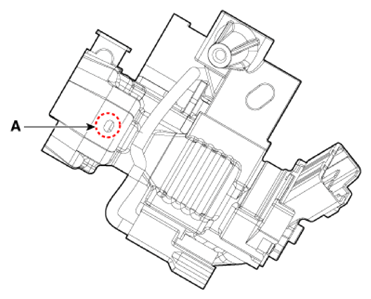

  7. Pushing lock pin (A) with the awl.
    G13706159Courtesy of HYUNDAI MOTOR AMERICA

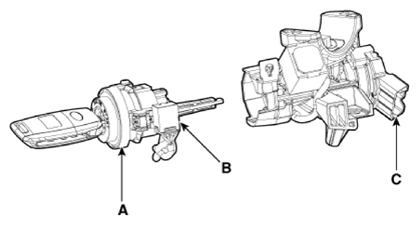

  8. Remove the key lock cylinder (A).

    B: Key warning switch

    C: Ignition switch connector

    G13706160Courtesy of HYUNDAI MOTOR AMERICA

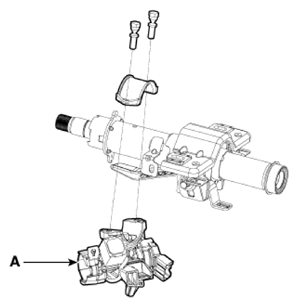

  9. Remove the ignition switch (A) after loosening the mounting bolts.
    G13706161Courtesy of HYUNDAI MOTOR AMERICA
