Diagnosis With KDS/GDS

The body electrical system can be quickly diagnosed for failed parts by using vehicle diagnostic system (KDS/GDS).
The diagnostic system (KDS/GDS) provides the following information.
1. Self diagnosis: Checks and displays the failure code (DTC)
2. Current data: Checks the system input/output data state
3. Actuation test: Checks the system operating condition
4. Additional function: Other controls such as the system option and zero point
Select the 'Car model' and the system to be checked in order to check the vehicle with the tester.
Select the 'Body Control Module (BCM)' to check the Body Control Module (BCM).

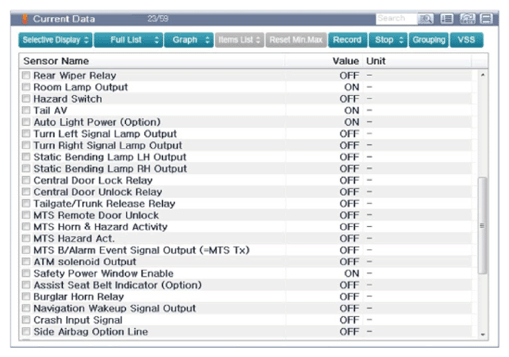

Select the "Current Data" menu to search the current state of the input/output data.
The input/output data for the sensors corresponding to the door lock switch can be checked.

Courtesy of KIA MOTORS AMERICA, INC.

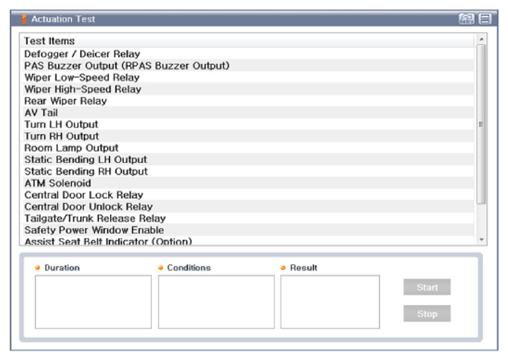

If you will check the power door lock operation forcefully, select "Actuation test" of BCM.

Courtesy of KIA MOTORS AMERICA, INC.
