Driver Power Window Switch

1. Disconnect the negative (-) battery terminal.

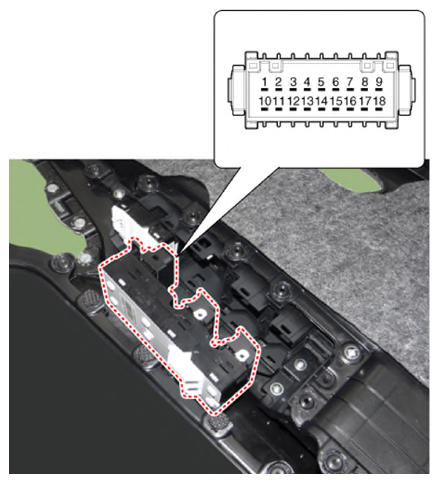

2. Remove the front left door trim.
3. Disconnect the power window switch connector from the door trim.

   Courtesy of KIA MOTORS AMERICA, INC.

4. Check for continuity between the terminals in each switch position according to the table. If the continuity condition is not normal, replace the switch.

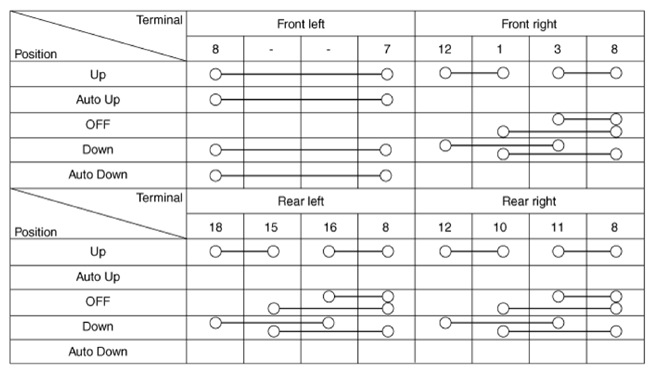

[Front/Rear Driver Safety - Auto Up/Down]

Courtesy of KIA MOTORS AMERICA, INC.

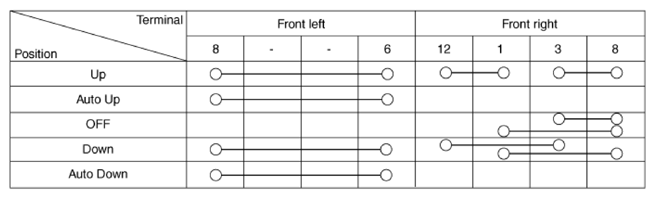

[Front Driver Safety - Auto Up/Down]

Courtesy of KIA MOTORS AMERICA, INC.

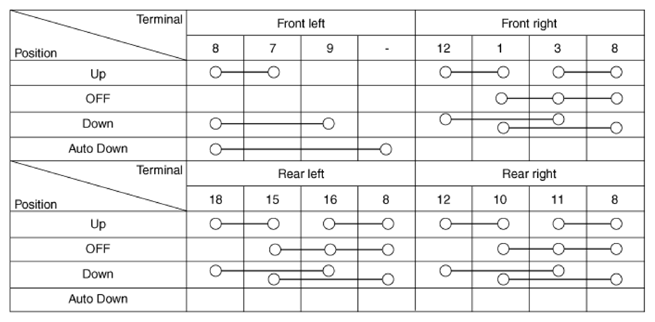

[Front/Rear Auto Down]

Courtesy of KIA MOTORS AMERICA, INC.

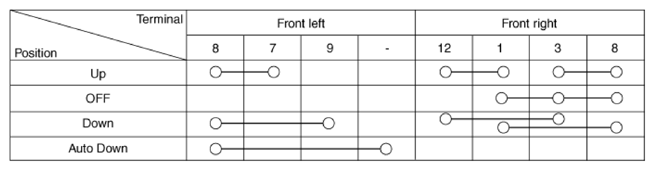

[Front Auto Down]

Courtesy of KIA MOTORS AMERICA, INC.
