Driver Power Window Switch

  1. Disconnect the negative (-) battery terminal.
  2. Remove the front left door trim.

    (Refer to Body - "FRONT DOOR TRIM ")

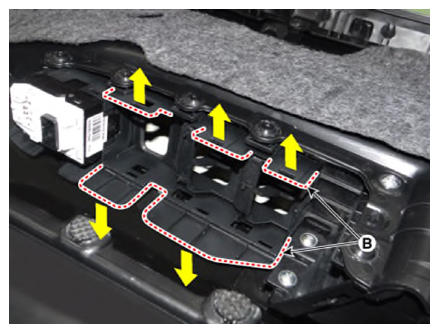

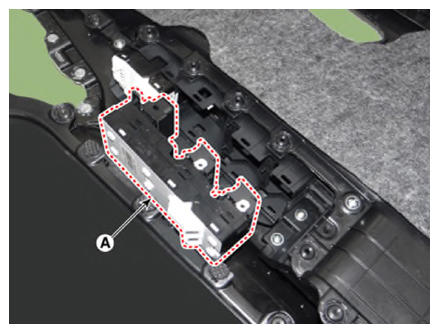

  3. Remove the power window switch assembly (A) by pulling out both ends of the switch holders (B).
    G13706446Courtesy of KIA MOTORS AMERICA, INC.
    G13706447Courtesy of KIA MOTORS AMERICA, INC.
