Charging System: Alternator: Specifications: Specification

Item		Specification
Rated voltage		13.5V, 130A
Speed in use		1, 000 -18, 000 rpm
Voltage regulator		IC Regulator built-in type
Regulator Setting Voltage	External mode	10.6- 16 ± 0.3V
	Internal mode	14.5 ± 0.3V

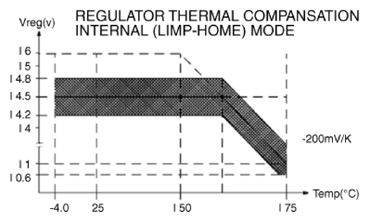

Temperature Gradient	External mode	0±2mV/°C
	Internal mode	-3.5 ± 2 mV/°C

Courtesy of KIA MOTORS AMERICA, INC.
