Battery Tray
- Remove the battery. (Refer to REMOVAL ).
- Remove the air cleaner assembly.
(Refer to Engine Mechanical System - "AIR CLEANER ")
- Remove the ECM.
(Refer to Engine Control/Fuel System - "ENGINE CONTROL MODULE (ECM) ")

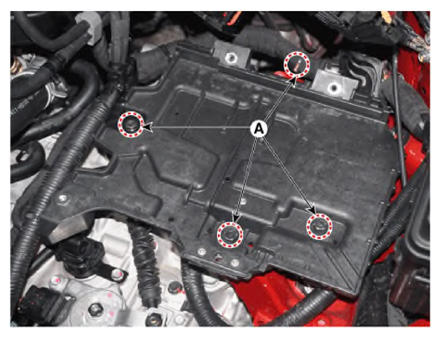

- Remove the battery tray after loosening the bolts (A).
Battery tray installation bolts:
8.8 -13.7 N.m (0.9 -1.4 kgf.m, 6.5 -10.1 lb-ft)
