Repair Procedures: Removal

  1. Disconnect the negative battery terminal.

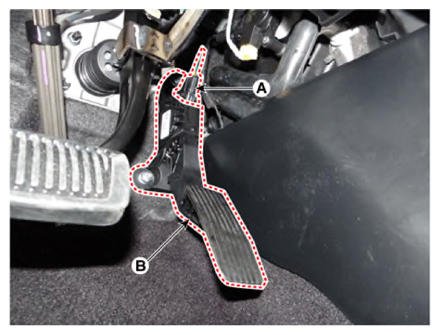

  2. Disconnect the accelerator position sensor (APS) connector (A).
  3. Remove the accelerator pedal module (B) after loosening the mounting nuts.

    Tightening torque:

    9.8 -11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

    G13704698Courtesy of KIA MOTORS AMERICA, INC.
