Accelerator Position Sensor (APS): Specifications: Specification

Accelerator Position Output Voltage (V)
APS 1 APS 2
C.T 0.7-0.8 0.33 - 0.43
W.O.T 3.98 - 4.22 1.93-2.17

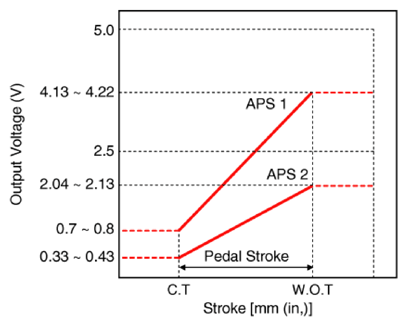

G13704693Courtesy of KIA MOTORS AMERICA, INC.
