CVVT Oil Control Valve (OCV)
>>
Components And Components Location
>>
Components Location
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Components Location

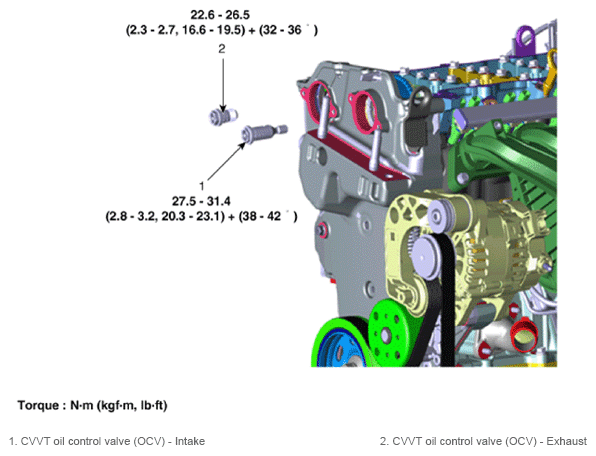

Fig 1: CVVT Oil Control Valve Components Location With Torque Specification
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
