Repair Procedures: Removal: [Exhaust]

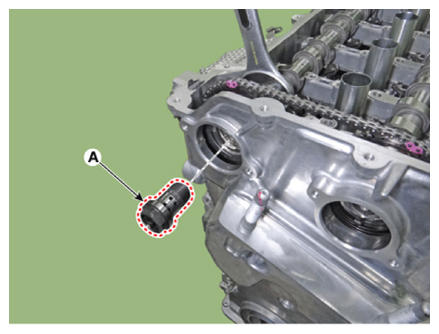

G13704702Courtesy of KIA MOTORS AMERICA, INC.
NOTE:
  • To prevent impurities from entering OCV & center bolt, wear rubber gloves.

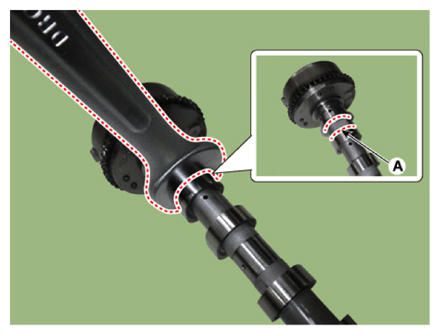

  • When removing the OCV & center bolt, place a wrench at position (A) to prevent the camshaft from rotating.
    G13704703Courtesy of KIA MOTORS AMERICA, INC.
