Repair Procedures: Removal
- Disconnect the negative battery terminal.
- Remove the engine room under cover.
(Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ").

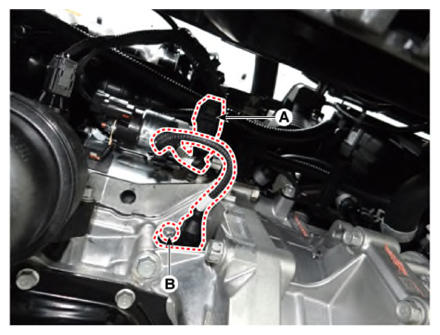

- Disconnect the crankshaft position sensor (CKPS) connector (A).
- Remove the CKPS after loosening the mounting bolt (B).
Tightening torque:
9.8 -11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)
