Repair Procedures: Removal

Disconnect the negative battery terminal.
Remove the air cleaner.
(Refer to Engine Mechanical System - "AIR CLEANER ")

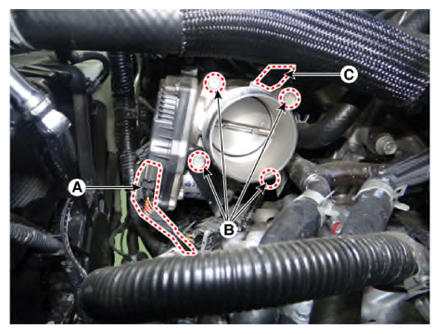

Disconnect the electric throttle control (ETC) module connector (A)
Remove the ETC module mounting bolts (B).
Remove the vapor hose (C).
Tightening torque:

9.8 -11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
