VIN programming procedure

VIN (Vehicle Identification Number) is a number that has the vehicle's information (Maker, Vehicle Type, Vehicle Line/Series, Body Type, Engine Type, Transmission Type, Model Year, Plant Location and so forth. For more information, refer to "GENERAL INFORMATION "). When replacing an ECM, the VIN must be programmed in the ECM. If there is no VIN in ECM memory, the fault code (DTC P0630) is set.

1. Turn the ignition switch OFF.
2. Connect the KDS to Data Link Connector (DLC).
3. Turn the ignition switch ON.
4. Select "Vehicle, Model Year, Engine, System".

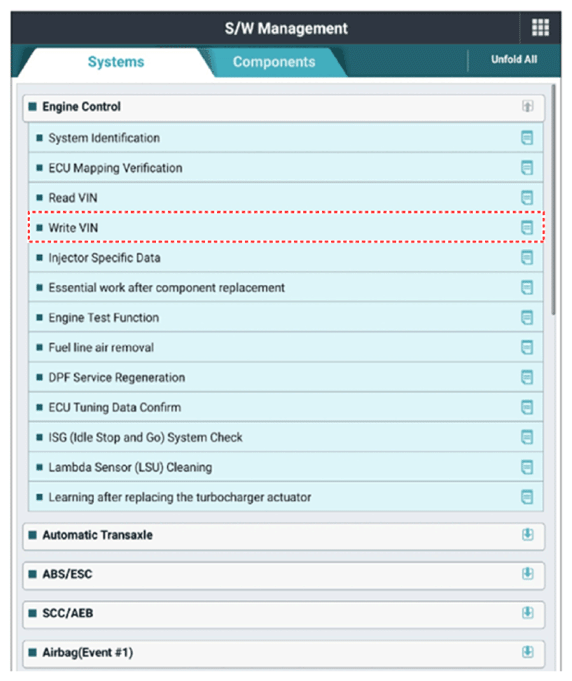

5. Select "Vehicle S/W Management".

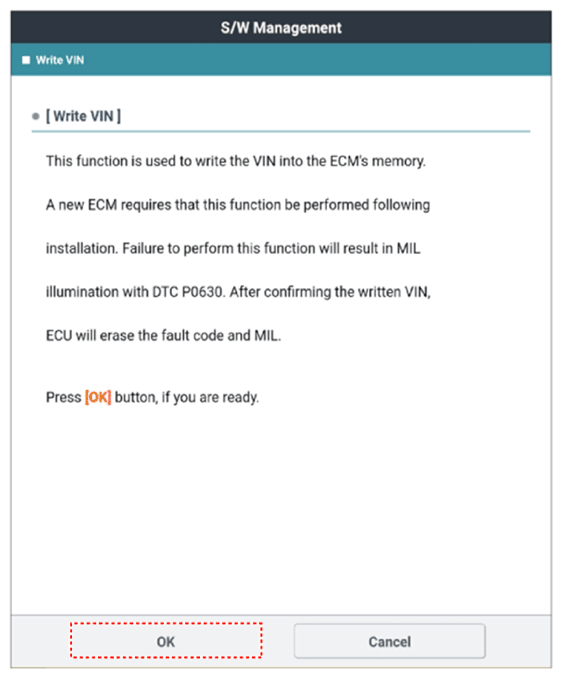

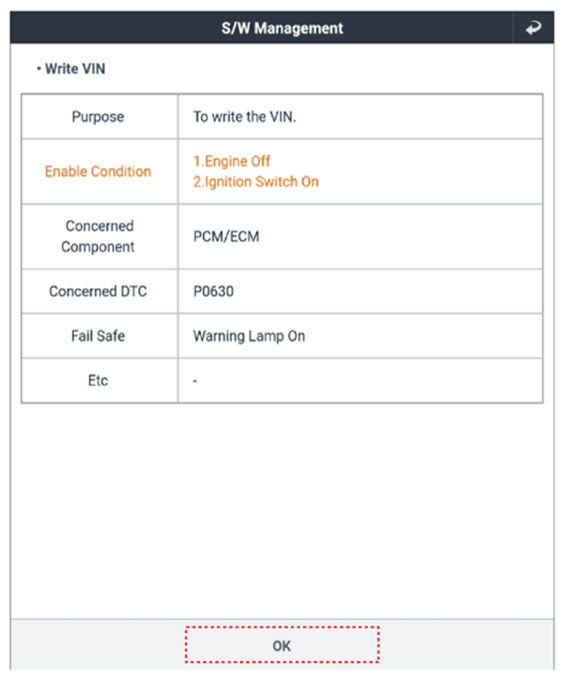

6. Select "Write VIN".

   Courtesy of KIA MOTORS AMERICA, INC.

   Courtesy of KIA MOTORS AMERICA, INC.

   Courtesy of KIA MOTORS AMERICA, INC.
