Rear Heated Oxygen Sensor]

  1. Disconnect the negative battery terminal.

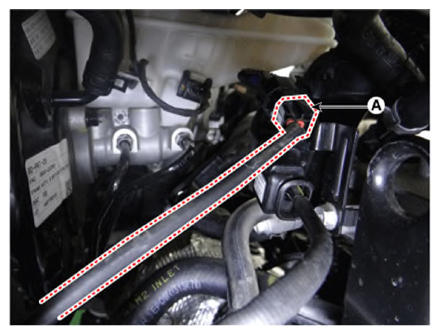

  2. Disconnect the heated oxygen sensor connector (A).
    G13704691Courtesy of KIA MOTORS AMERICA, INC.

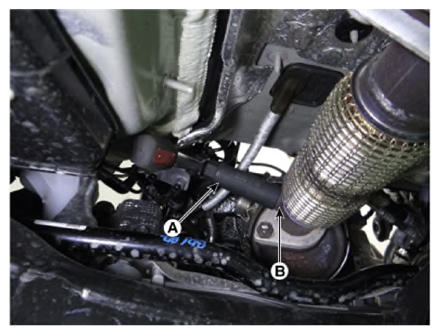

  3. Remove the heated oxygen sensor (B) using the SST (09392-1Y100) (A).

    Tightening torque:

    49.0-63.7 N.m (5.0-6.5 kgf.m, 11.0 -14.3 lb.ft)

    G13704692Courtesy of KIA MOTORS AMERICA, INC.
