Components And Components Location: Components

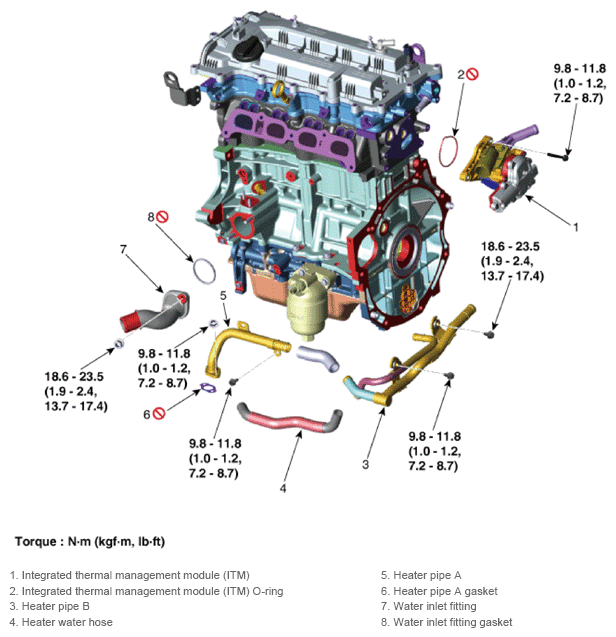

Fig 1: Integrated Thermal Management Module Components Location With Torque Specification
G13704727Courtesy of KIA MOTORS AMERICA, INC.
