Description And Operation: Description

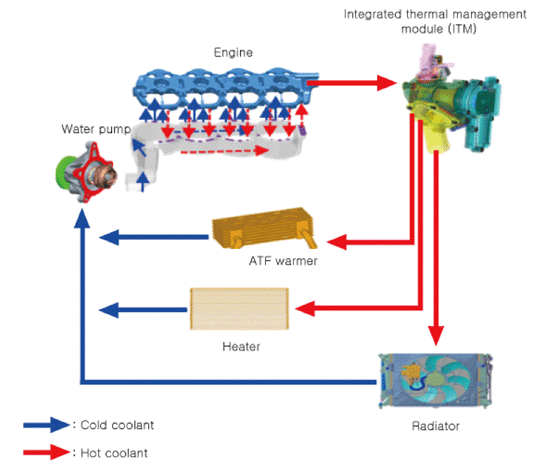

- Integrated thermal management module (ITM) has purpose to control coolant flow by the temperature of coolant.
- Integrated thermal management module (ITM) helps fast warm-up by controlling valve to flow coolant only in engine when the first engine start, and helps to improve fuel efficiency through fast warm-up.
- Integrated thermal management module (ITM) controls coolant temperature by controlling coolant flow into radiator or heater through controlling valve when the coolant temperature goes higher.
