Repair Procedures: Removal
- Disconnect the negative battery terminal.
- Remove the intake manifold.
(Refer to Engine Mechanical System - "REMOVAL AND INSTALLATION ").

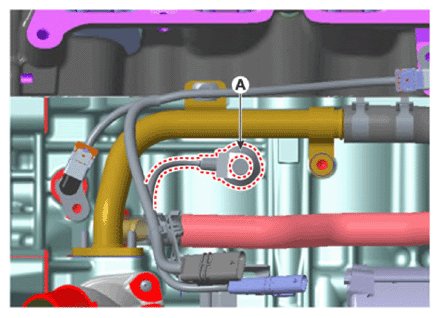

- Remove the knock sensor (A) after loosening the mounting bolt.
Tightening torque:
18.6-24.5 N.m (1.9-2.5 kgf.m, 13.7-18.1 lb.ft)
