Components Location

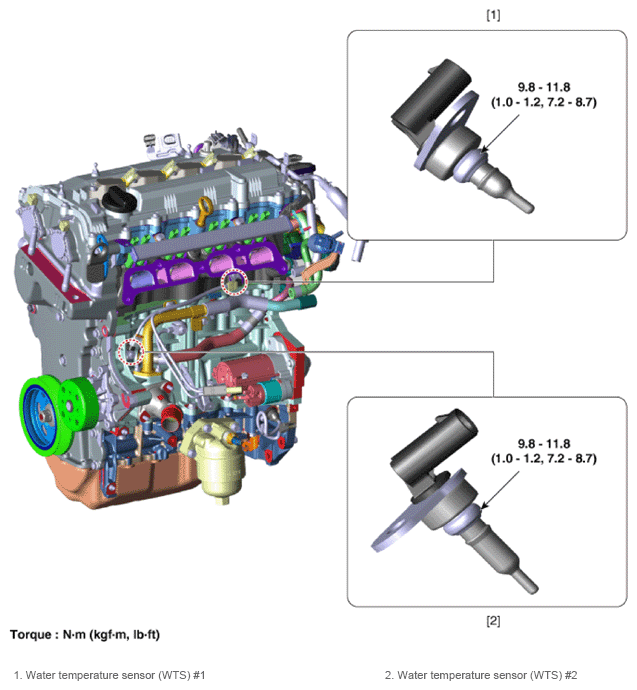

Fig 1: Water Temperature Sensor Components Location With Torque Specification
G13704654Courtesy of KIA MOTORS AMERICA, INC.
