Electrical Circuit Inspection Procedure

Check Open Circuit

Procedures for Open Circuit

Continuity Check
Voltage Check

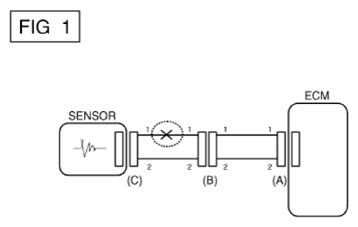

If an open circuit occurs (as seen in Figure below), it can be found by performing Step 2 (Continuity Check Method) or Step 3 (Voltage Check Method) as shown below.

Courtesy of KIA MOTORS AMERICA, INC.

Continuity Check Method

NOTE: When measuring for resistance, lightly shake the wire harness above and below or from side to side.

Specification (Resistance)

1Ω or less → Normal Circuit

1MΩ or Higher → Open Circuit

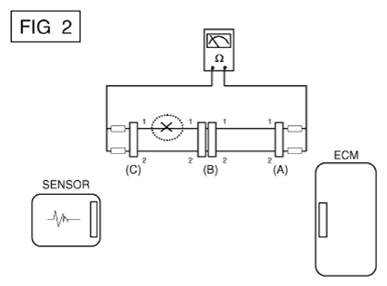

Disconnect connectors (A), (C) and measure resistance between connector (A) and (C) as shown in Figure below.

In Figure below the measured resistance of line 1 and 2 is higher than 1 MΩ and below 1 Ω respectively. Specifically the open circuit is line 1 (Line 2 is normal). To find exact break point, check sub line of line 1 as described in next step.

Courtesy of KIA MOTORS AMERICA, INC.

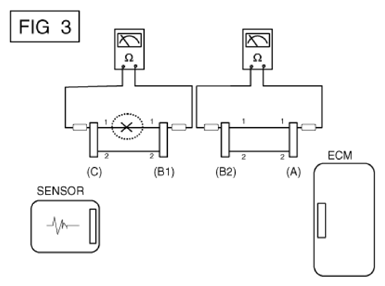

Disconnect connector (B), and measure for resistance between connector (C) and (B1) and between (B2) and (A) as shown in Figure below.

In this case the measured resistance between connector (C) and (B1) is higher than 1MΩ and the open circuit is between terminal 1 of connector (C) and terminal 1 of connector (B1).

Courtesy of KIA MOTORS AMERICA, INC.

Voltage Check Method

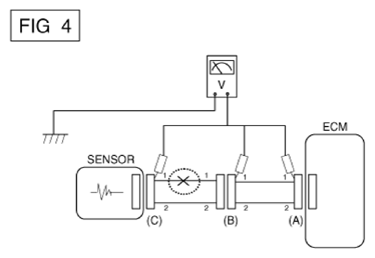

With each connector still connected, measure the voltage between the chassis ground and terminal 1 of each connectors (A), (B) and (C) as shown in Figure below.

The measured voltage of each connector is 5V, 5V and 0V respectively. So the open circuit is between connector (C) and (B).

Courtesy of KIA MOTORS AMERICA, INC.

Check Short Circuit

Test Method for Short to Ground Circuit

Continuity Check with Chassis Ground

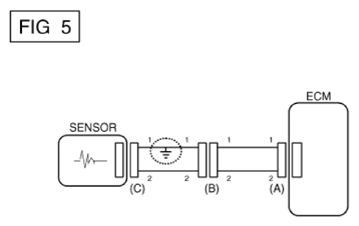

If short to ground circuit occurs as shown in Figure below, the broken point can be found by performing Step 2 (Continuity Check Method with Chassis Ground) as shown below.

Courtesy of KIA MOTORS AMERICA, INC.

Continuity Check Method (with Chassis Ground)

NOTE: Lightly shake the wire harness above and below, or from side to side when measuring the resistance.

Specification (Resistance)

1Ω or less → Short to Ground Circuit

1MΩ or Higher → Normal Circuit

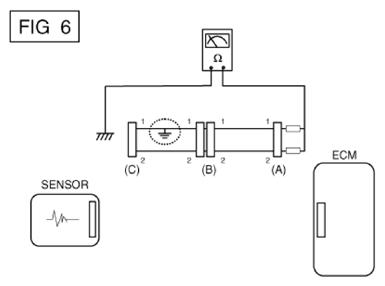

Disconnect connectors (A), (C) and measure for resistance between connector (A) and Chassis Ground as shown in Figure below.

The measured resistance of line 1 and 2 in this example is below 1 Ω and higher than 1 MΩ respectively. Specifically the short to ground circuit is line 1 (Line 2 is normal). To find exact broken point, check the sub line of line 1 as described in the following step.

Courtesy of KIA MOTORS AMERICA, INC.

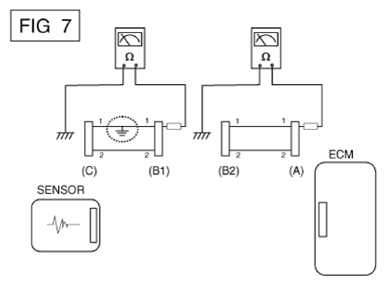

Disconnect connector (B), and measure the resistance between connector (A) and chassis ground, and between (B1) and chassis ground as shown in Figure below.

The measured resistance between connector (B1) and chassis ground is 1Ω or less. The short to ground circuit is between terminal 1 of connector (C) and terminal 1 of connector (B1).
