Repair Procedures: Removal

Remove the rear-LH wheel, tire, and the inner wheel house.
Disconnect the fuel filler hose (A).
Disconnect the ventilation hose (B) and leveling hose (C).

Courtesy of KIA MOTORS AMERICA, INC.
Open the fuel filler door and unfasten the filler-neck assembly mounting screw (A).
Filler-neck assembly bracket installation screw:

3.9 ~ 5.9 N.m (0.4 ~ 0.6 kgf.m, 2.9 ~ 4.3 lb-ft)

Courtesy of KIA MOTORS AMERICA, INC.

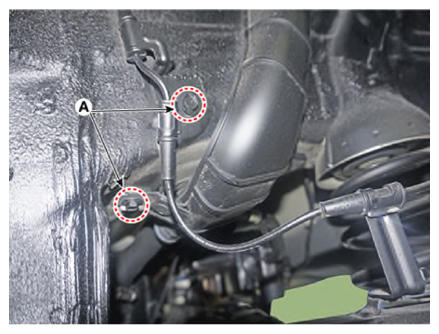

Remove the filler-neck assembly from the vehicle after removing the bracket mounting bolts (A).
Filler-neck assembly installation bolt:

7.8 ~ 11.8 N..m (0.8 ~ 1.2 kgf.m, 5.8 ~ 8.7 lb-ft)

Courtesy of KIA MOTORS AMERICA, INC.
