Charging System: Alternator

Item Specification
Rated voltage 13.5V, 130A
Speed in use 1, 000 - 18, 000 RPM
Voltage regulator IC Regulator built-in type
Regulator Setting Voltage External mode 10.6 - 16 ± 0.3V
Internal mode 14.5 ± 0.3V

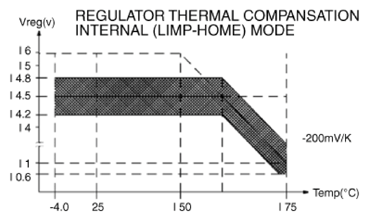

Temperature Gradient External mode 0 ± 2 mV/°C
Internal mode -3.5 ± 2 mV/°C
G13704423Courtesy of KIA MOTORS AMERICA, INC.
