Removal And Installation
- Remove the ignition coil.
(Refer to Ignition System - "IGNITION COIL ")

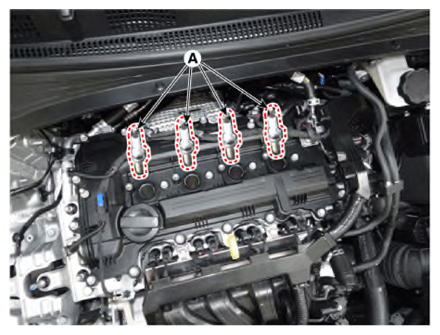

- Using a spark plug wrench, remove the spark plug (A).NOTE:
- Be careful that no contaminates enter into spark plug holes.
- Install in the reverse order of removal.
Tightening torque:
14.7-24.5 N.m(1.5-2.5kgf.m, 10.8-18.0 Ib-ft)
NOTE:- Install the spark plug with the specified torque.
- Be careful not to damage external electrode when installing the spark plug.
- If spark plug is dropped, it may cause internal damage. Do not use it.

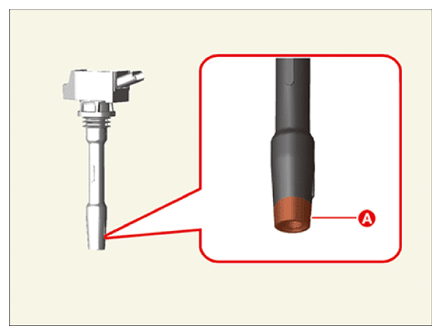

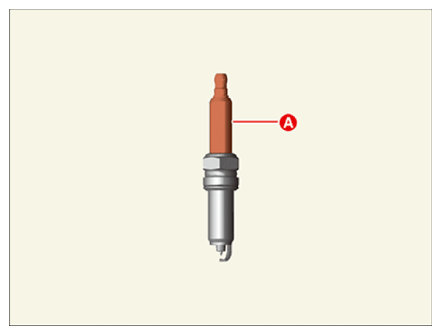

- When assembling the parts, clean the contaminated area (A) with the cloth.
- The cloth should be clean, free of contaminants, and soft enough to not damage the parts.
(When replacing ignition coil and spark plug together, cleaning is not required.)
- The cloth should be clean, free of contaminants, and soft enough to not damage the parts.
