Repair Procedures: Removal

  1. Shift the gear to "N".
  2. Remove the air cleaner assembly.

    (Refer to Engine Mechanical System - "AIR CLEANER ")

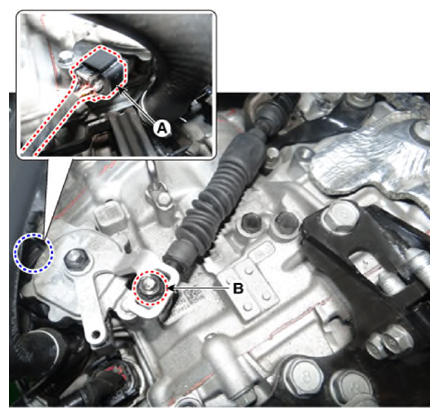

  3. Disconnect the position switch connector (A) and loosen the shift cable mounting nut (B).
    G13704812Courtesy of KIA MOTORS AMERICA, INC.

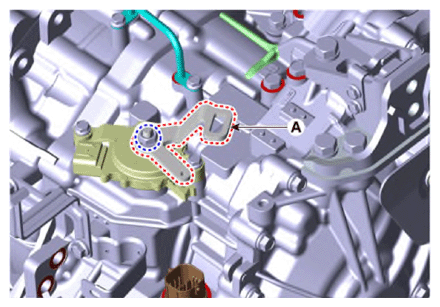

  4. Remove the manual control lever (A) and the washer after removing a nut.
    G13704813Courtesy of KIA MOTORS AMERICA, INC.

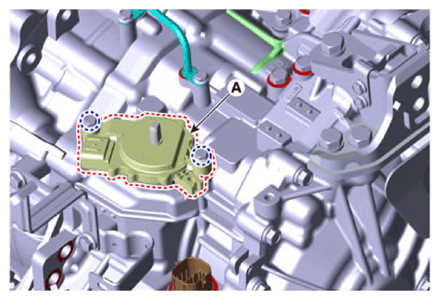

  5. Remove the position switch (A) after removing the bolts.
    G13704814Courtesy of KIA MOTORS AMERICA, INC.
