Repair Procedures: Removal

Remove the fuel pump.
(Refer to Fuel Delivery System - "FUEL PUMP ")

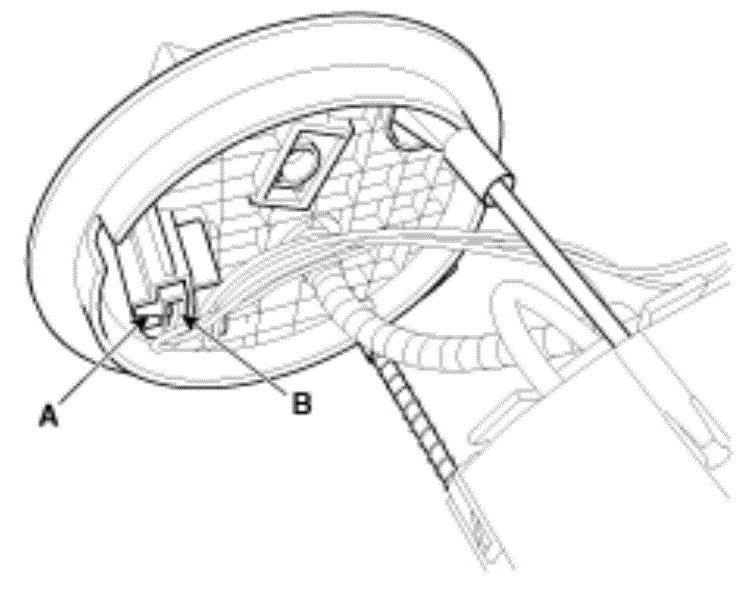

Disconnect the fuel sender connector (A) and fuel pump connector (B).

Courtesy of KIA MOTORS AMERICA, INC.

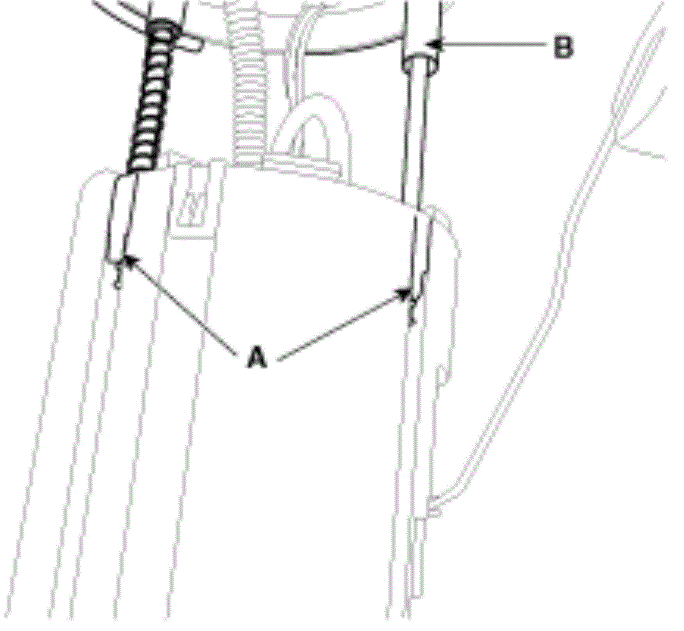

Remove the cushion pipe fixing clip (A), and then separate the head assembly (B) from reservoir cup.

Courtesy of KIA MOTORS AMERICA, INC.

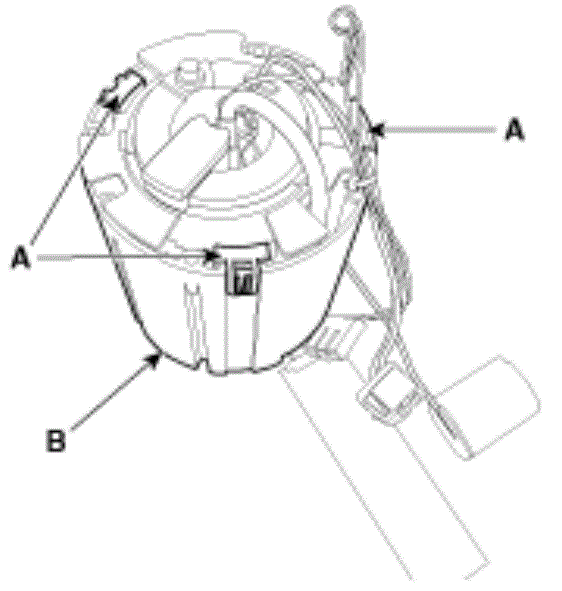

Remove the reservoir cup (B) after releasing the fixing hook (A).

Courtesy of KIA MOTORS AMERICA, INC.

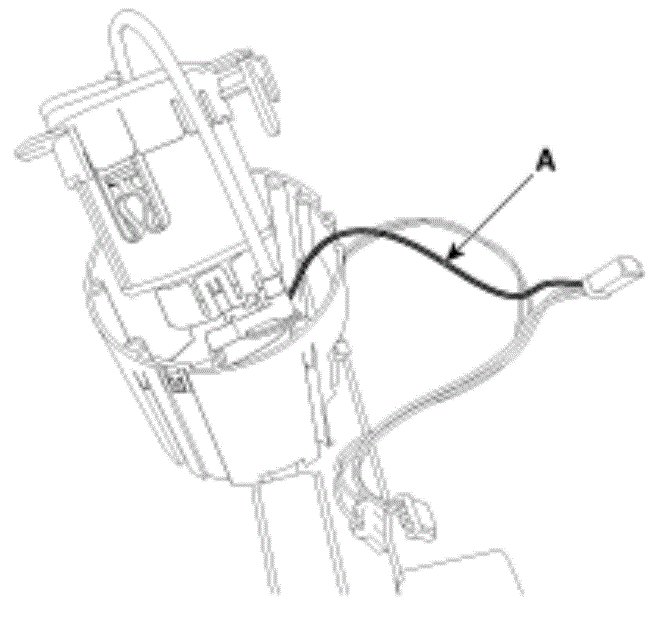

Disconnect the ground line (A).

Courtesy of KIA MOTORS AMERICA, INC.

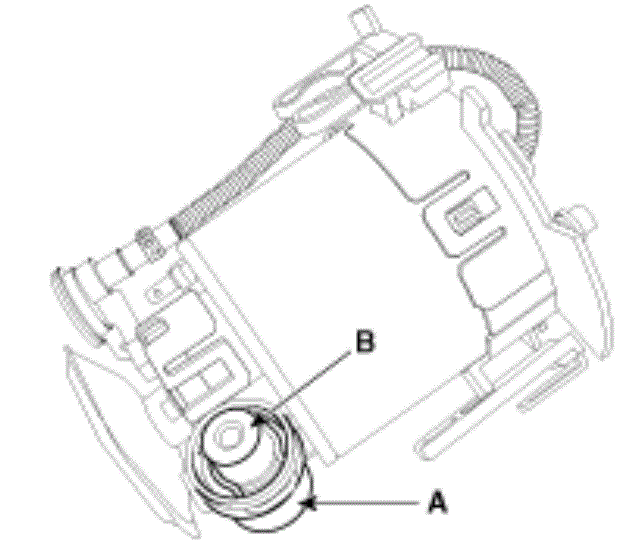

Remove the fuel pressure regulator after remove the fixing pin (A).

Courtesy of KIA MOTORS AMERICA, INC.
