Repair Procedures: Removal

Remove the fuel pump.
(Refer to Fuel Delivery System - "FUEL PUMP ")

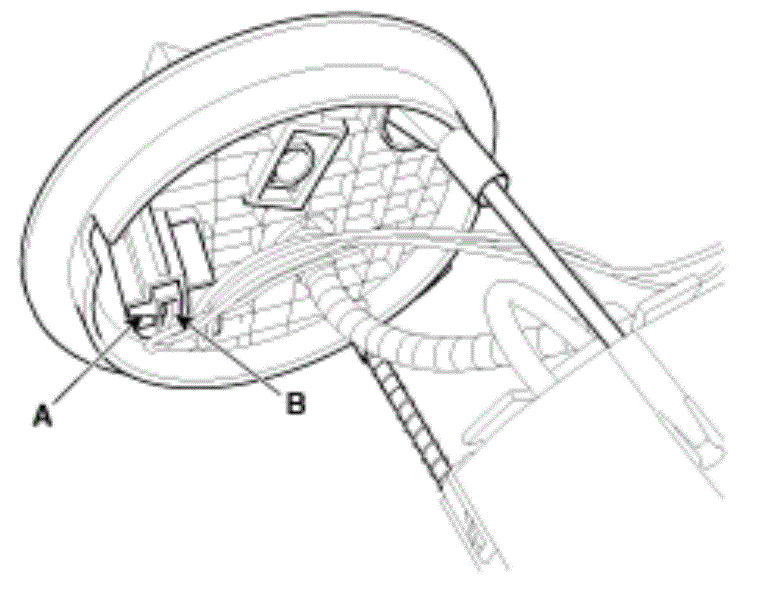

Disconnect the fuel sender connector (A) and fuel pump connector (B).

Courtesy of KIA MOTORS AMERICA, INC.

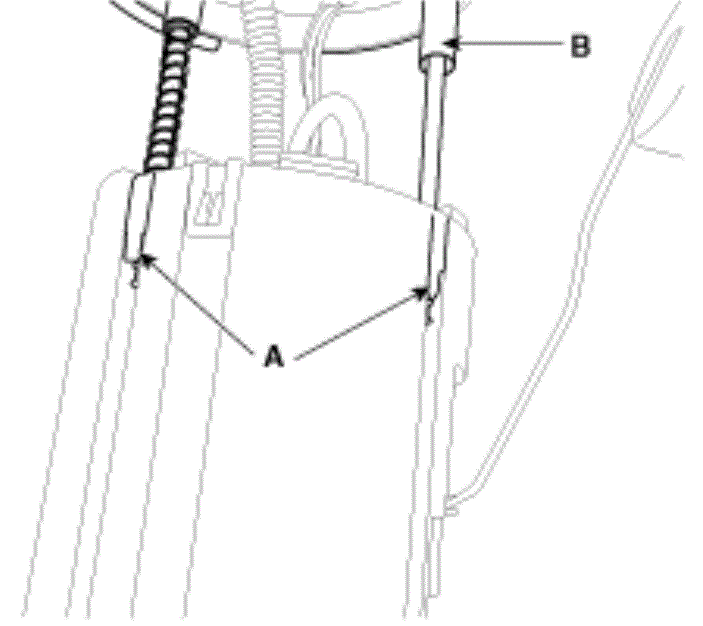

Remove the cushion pipe fixing clip (A), and then separate the head assembly (B) from reservoir cup.

Courtesy of KIA MOTORS AMERICA, INC.

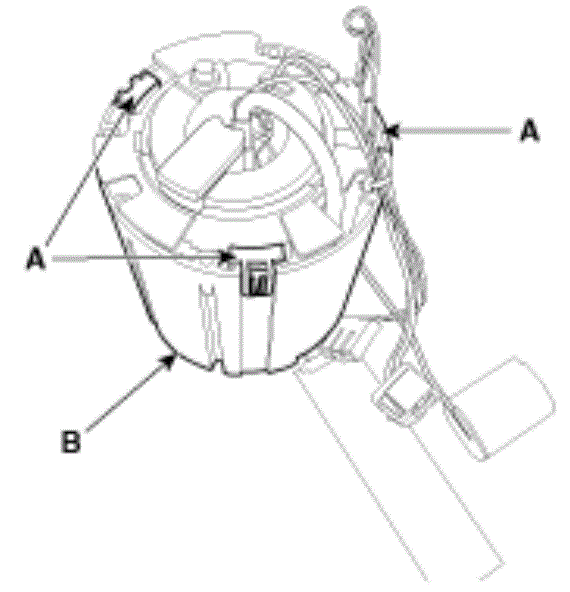

Remove the reservoir cup (B) after releasing the fixing hook (A).

Courtesy of KIA MOTORS AMERICA, INC.

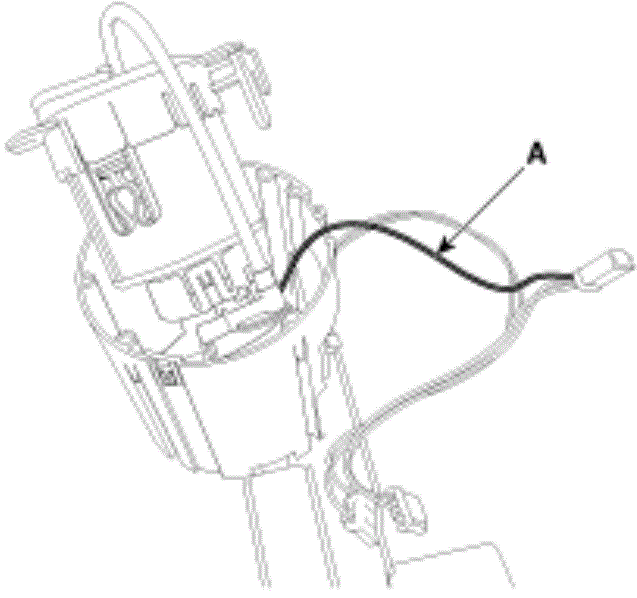

Disconnect the ground wire (A).

Courtesy of KIA MOTORS AMERICA, INC.

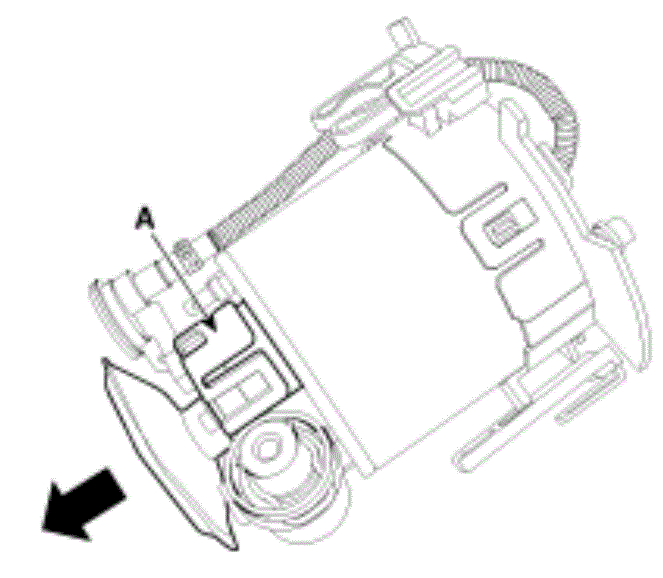

Separate the fuel pump motor and filter after removing the fuel pump motor (A).

Courtesy of KIA MOTORS AMERICA, INC.
Remove the fixing clip (A), and then assist pump assembly (B).

Courtesy of KIA MOTORS AMERICA, INC.
Separate the electric pump motor (A).

Courtesy of KIA MOTORS AMERICA, INC.

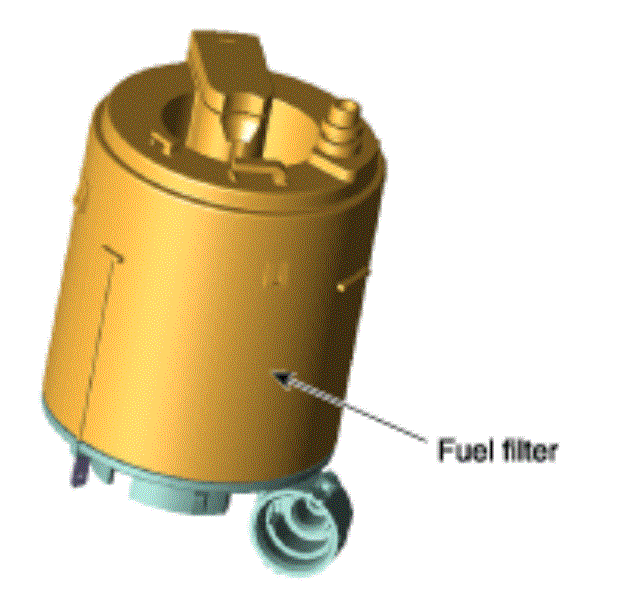

Replace new fuel filter.

Courtesy of KIA MOTORS AMERICA, INC.
