Repair Procedures: Removal

Move the shift lever to "N" range.
Remove the air cleaner assembly.
(Refer to Engine Mechanical System - "AIR CLEANER )
Remove the battery and battery tray.
(Refer to Engine Electrical System - "BATTERY ")
Loosen the nut (A) and then remove the shift cable (B) from the bracket (C).
Tightening torque:

7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
Remove the knob (A) and boots (B) by pulling them in the direction of the arrow after separating the boots from the console upper cover.

Courtesy of KIA MOTORS AMERICA, INC.
Remove the floor console assembly.
(Refer to Body - "FLOOR CONSOLE ASSEMBLY ")
Remove the shift cable (A) from the shift lever.

Courtesy of KIA MOTORS AMERICA, INC.

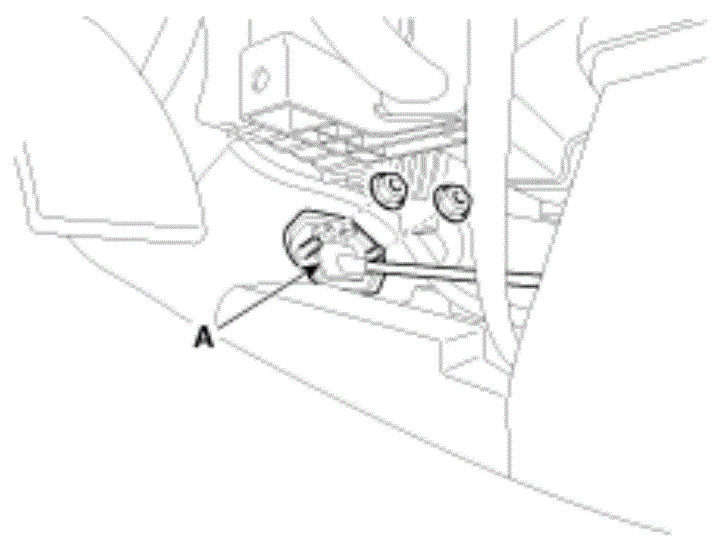

Remove the cable retainer (A) by loosening the nuts (B)
Tightening torque:

7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
Remove the shift cable by pulling it inward.
