Repair Procedures: Inspection

1. Switch "OFF" ignition.
2. Remove the battery and battery tray.

   (Refer to Engine Electrical System - "BATTERY ")

3. Start the engine after connecting the battery.

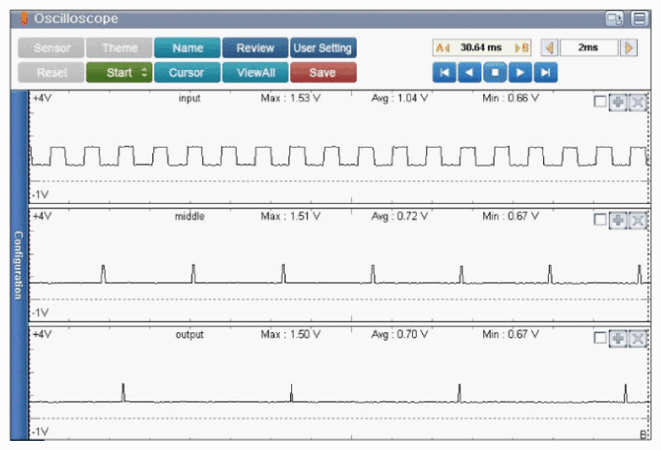

4. Connect VMI to KDS and set up an oscilloscope as follow (4-channel).

Courtesy of KIA MOTORS AMERICA, INC.

[P range]

Courtesy of KIA MOTORS AMERICA, INC.

[D range]

Courtesy of KIA MOTORS AMERICA, INC.
