Components & Component Location: Components

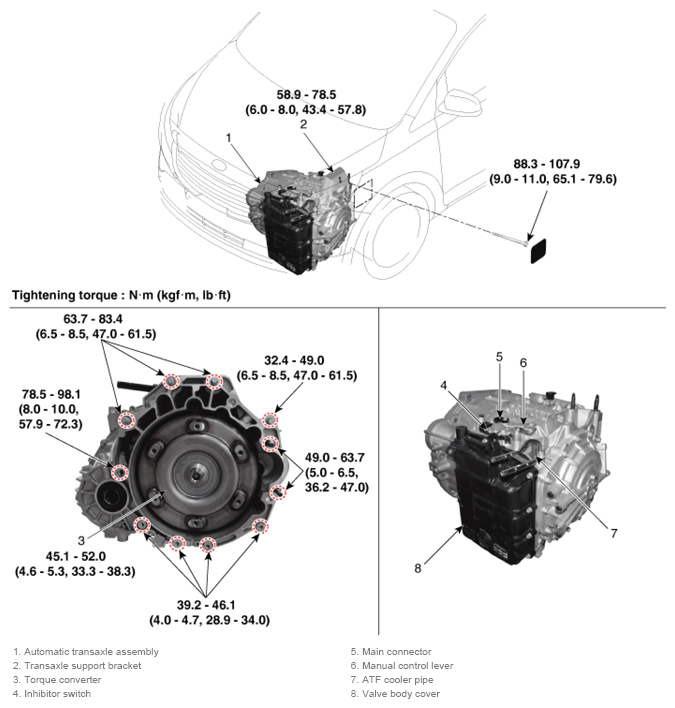

Fig 1: Automatic Transaxle System Components With Torque Specification
G13044494Courtesy of KIA MOTORS AMERICA, INC.
