Repair Procedures: Removal

  1. Perform the oil pressure characteristics backup procedure using the KDS when replacing with a new TCM.

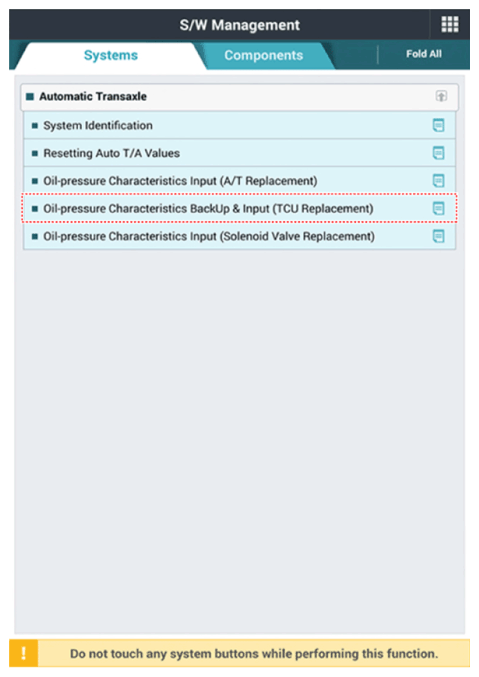

    1. Click the "Oil-pressure Characteristics Back Up & Input (TCU Replacement)".
      G13044407Courtesy of KIA MOTORS AMERICA, INC.

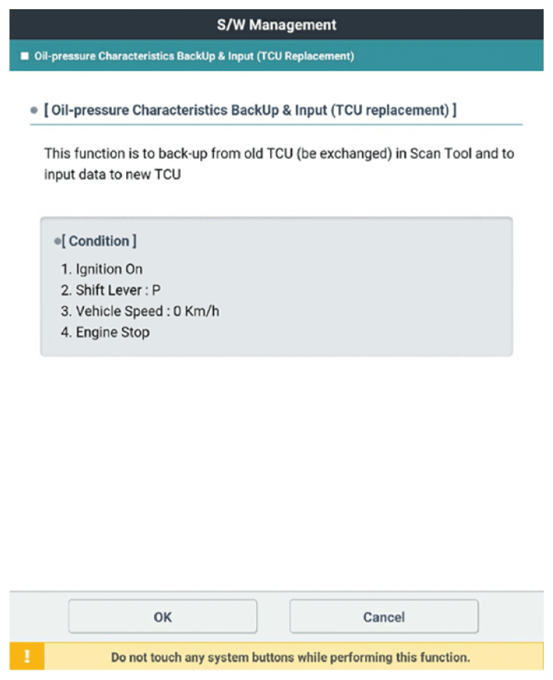

    2. Check the condition and then click the "OK".
      G13044408Courtesy of KIA MOTORS AMERICA, INC.

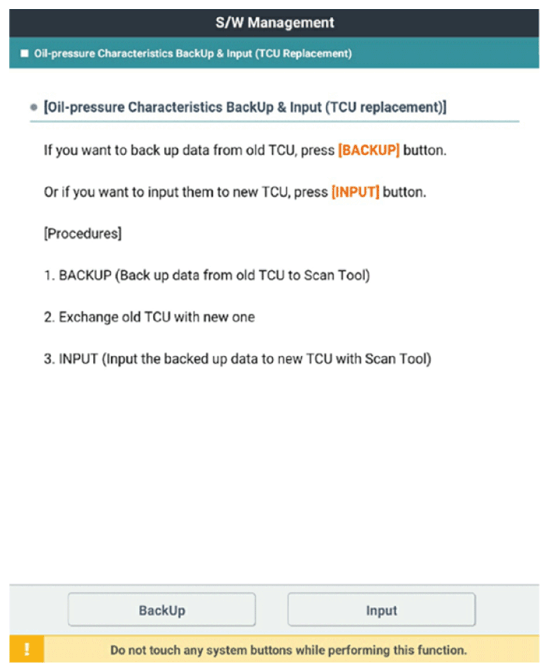

    3. Click the "BackUp".
    G13044409Courtesy of KIA MOTORS AMERICA, INC.
  2. Disconnect the battery negative terminal.

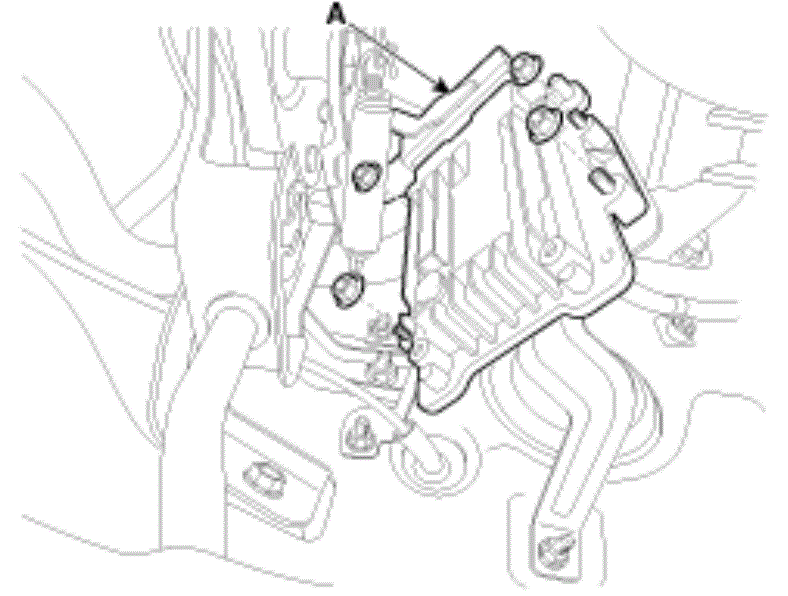

  3. Remove the TCM by loosening nuts after disconnecting the TCM connector (A).

    Tightening torque:

    9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

    G13044410Courtesy of KIA MOTORS AMERICA, INC.
