Power Window Main Switch

  1. Remove the driver side front door trim.

    (Refer to Body - "FRONT DOOR TRIM ")

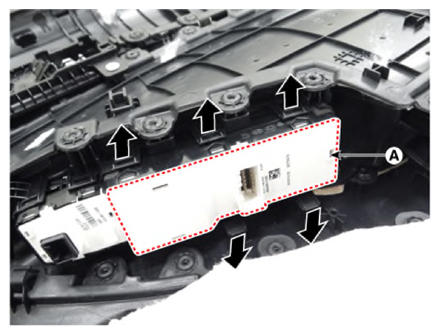

  2. Remove the power window main switch (A) by pushing the holders in the direction of arrow.
    G13486938Courtesy of KIA MOTORS AMERICA, INC.
