Components Location

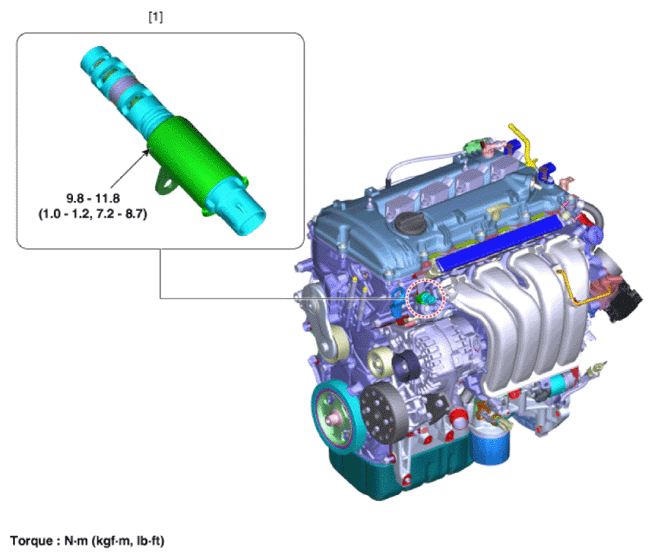

Fig 1: CVVT Oil Control Valve - Intake Component Location With Torque Specification
Courtesy of KIA MOTORS AMERICA, INC.

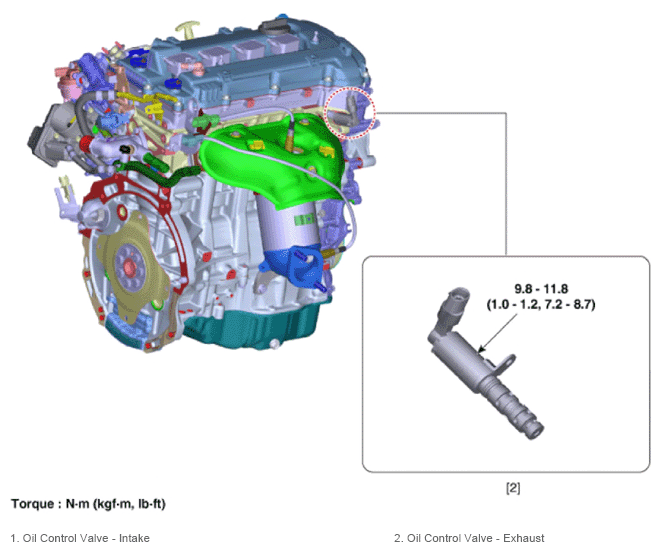

Fig 2: CVVT Oil Control Valve - Exhaust Component Location With Torque Specification
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
