Repair Procedures: Removal: Intake

  1. Disconnect the negative battery terminal.

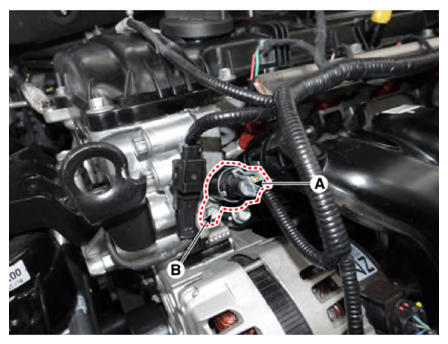

  2. Disconnect the CVVT oil control valve connector (A).
  3. Remove the CVVT oil control valve after loosening the mounting bolt (B).

    Tightening torque  :

    9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

    G13483065Courtesy of KIA MOTORS AMERICA, INC.
