Repair Procedures: Removal

Disconnect the negative battery terminal.
Remove the engine room under cover.
(Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ")

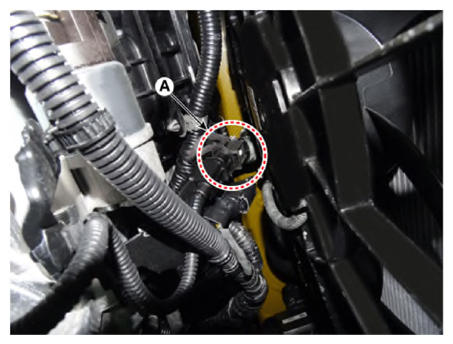

Disconnect the crankshaft position sensor connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

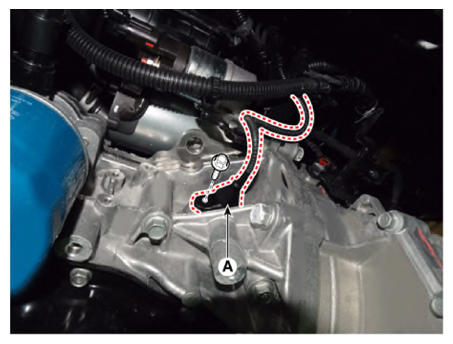

Remove the crankshaft position sensor (A) after loosening the mounting bolt.
Tightening torque :

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
