Repair Procedures: Removal

Disconnect the negative battery terminal.
Remove the air cleaner.
(Refer to Engine Mechanical System - "AIR CLEANER ")

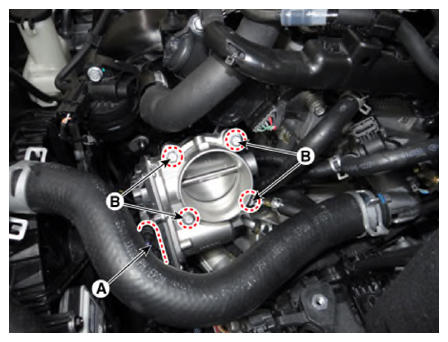

Disconnect the ETC module connector (A).
Loosen the ETC module mounting bolts (B).
Electronic throttle body mounting bolt :

7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

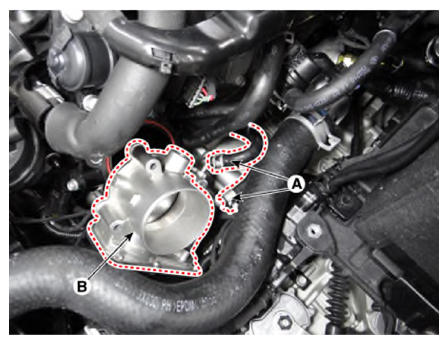

Separate the coolant hoses (A).
Remove the ETC module (B) from the engine.

Courtesy of KIA MOTORS AMERICA, INC.
