Repair Procedures: Removal

Disconnect the negative battery terminal.

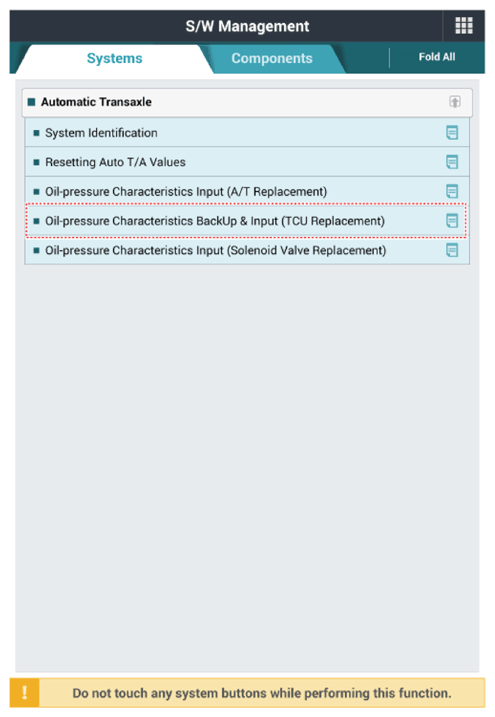

Perform the oil pressure characteristics backup procedure using the KDS when replacing with a new ECM.

Courtesy of KIA MOTORS AMERICA, INC.
Remove the battery.
(Refer to Engine Electrical System - "BATTERY ")

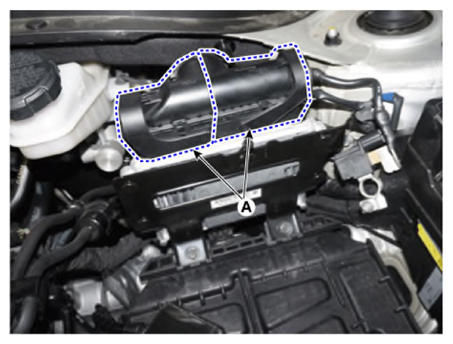

Disconnect the ECM connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

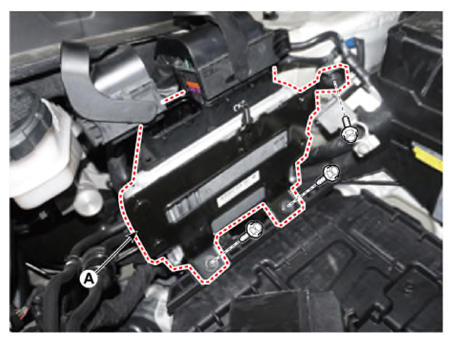

Remove the ECM (A) by loosening the bracket mounting bolts.
Tightening torque :

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

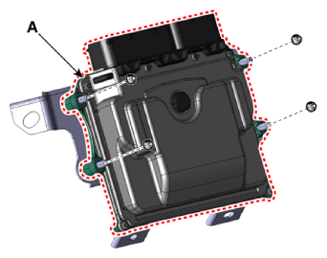

Remove the ECM (A) from the bracket.
Tightening torque :

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
