Components Location

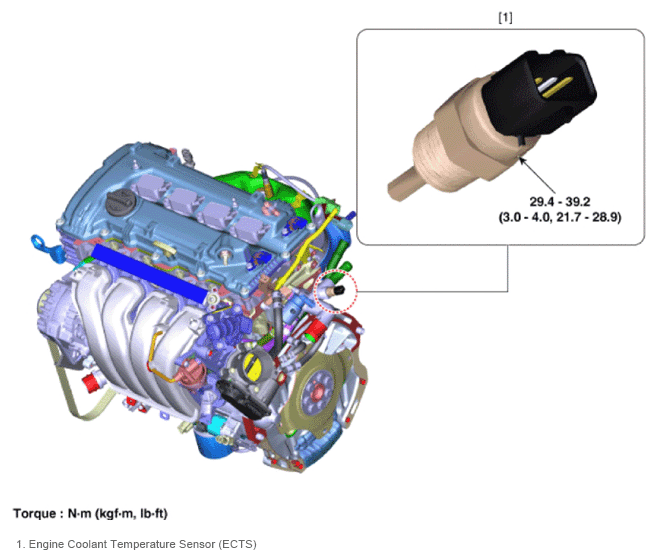

Fig 1: Engine Coolant Temperature Sensor Component Location With Torque Specification
G13483019Courtesy of KIA MOTORS AMERICA, INC.
