Repair Procedures: Installation

NOTE:

Install the components to the specified torque.
Note that internal damage may occur when the component is dropped. In this case, use it after inspecting.
Do not use a cleaner, spray or grease on the sensing element and connector because they could cause a malfunction of sensor.
The sensor or the wiring can be damaged by being contacted to the exhaust system (Exhaust manifold, Catalytic converter etc.)

Install in the reverse order of removal.

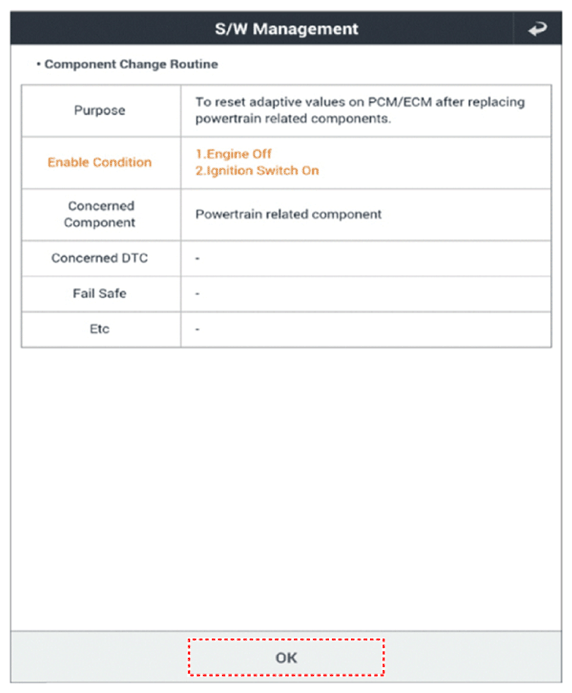

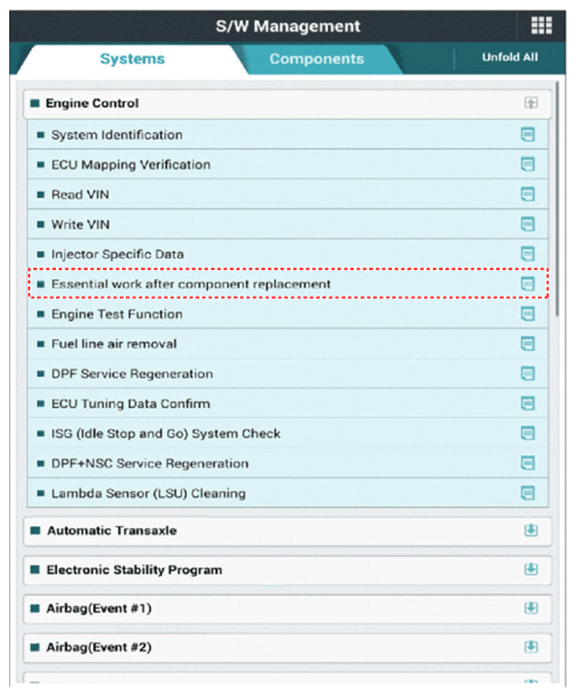

Reset the ECM adaptive value after replacing the heated oxygen sensor.
