Repair Procedures: Removal
- Disconnect the negative battery terminal.
- Remove the intake manifold.
(Refer to Engine Mechanical System - "INTAKE MANIFOLD ")

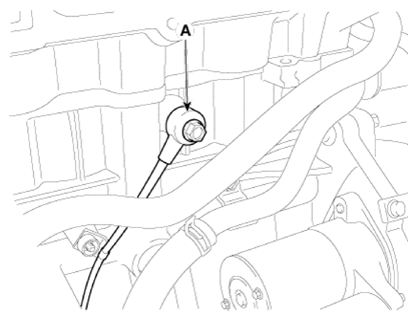

- Remove the knock sensor (A) after loosening the mounting bolt.
Knock sensor mounting bolt:
18.6 - 23.5 N.m (1.9 - 2.4 kgf.m, 13.7 - 17.4 lb.ft)
