Repair Procedures: Removal

  1. Disconnect the negative battery terminal.

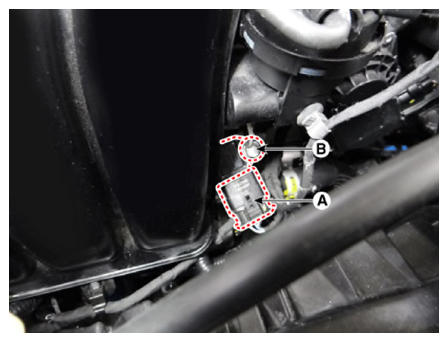

  2. Disconnect the MAPS & IATS connector (A).
  3. Remove the MAPS & IATS (A) from the intake manifold after loosening the mounting bolt (B).

    Tightening torque  :

    9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

    G13483017Courtesy of KIA MOTORS AMERICA, INC.
