Repair Procedures: Removal

Disconnect the negative battery terminal.

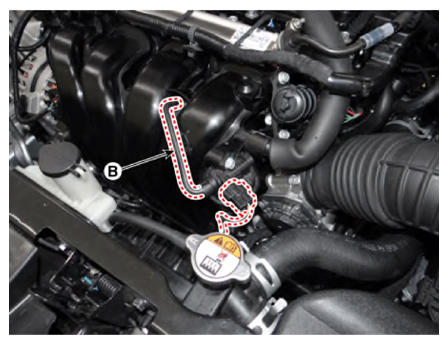

Disconnect the variable intake solenoid valve connector (A) and vacuum hose (B).

Courtesy of KIA MOTORS AMERICA, INC.

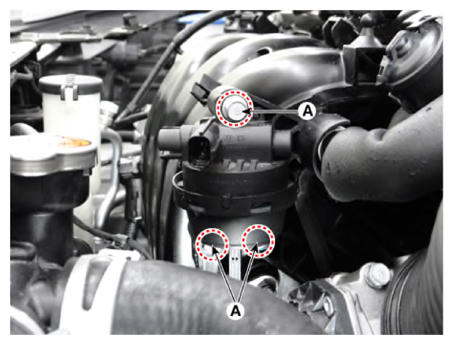

Remove the VIS valve after loosening the mounting bolts (A).
Tightening torque :

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

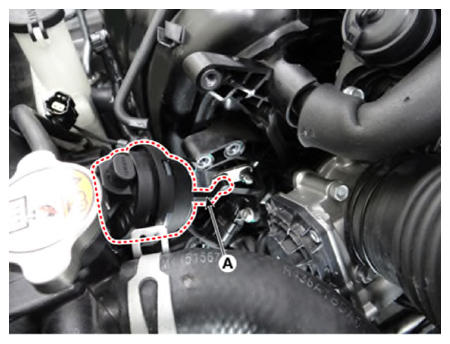

Remove the VIS valve (A) after loosening the rod.

Courtesy of KIA MOTORS AMERICA, INC.
