Repair Procedures: Disassembly

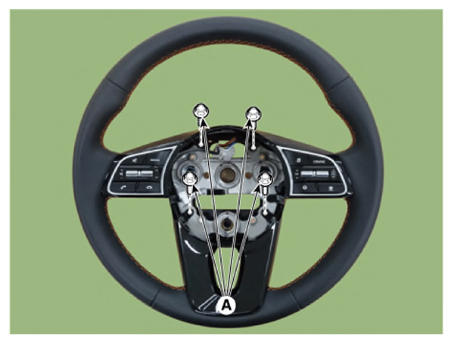

  1. Loosen the screws (A).
    G13481439Courtesy of KIA MOTORS AMERICA, INC.

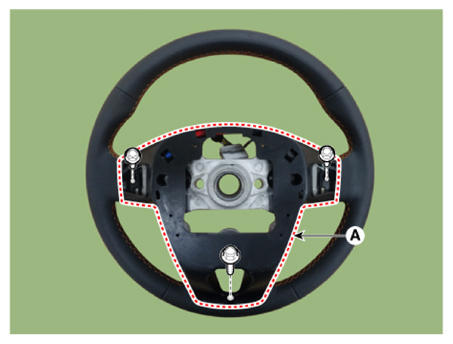

  2. Loosen the mounting screws, remove the lower cover (A).
    G13481440Courtesy of KIA MOTORS AMERICA, INC.

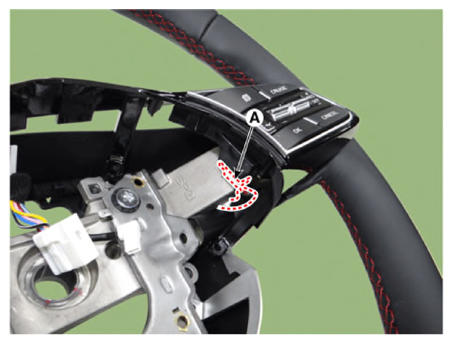

  3. Disconnect the remote control switch connector (A).
    G13481441Courtesy of KIA MOTORS AMERICA, INC.
    G13481442Courtesy of KIA MOTORS AMERICA, INC.

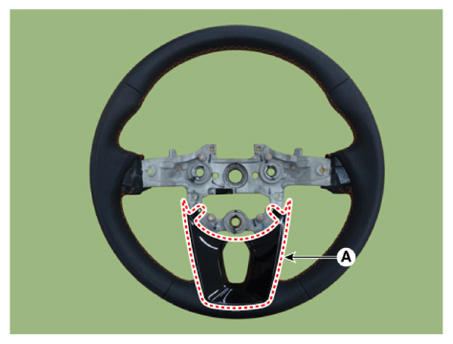

  4. Remove the bezel (A).
    G13481443Courtesy of KIA MOTORS AMERICA, INC.
  5. Assemble in the reverse order of disassembly.
