Repair Procedures: Installation: Notes

Install the wheel and tire (A).

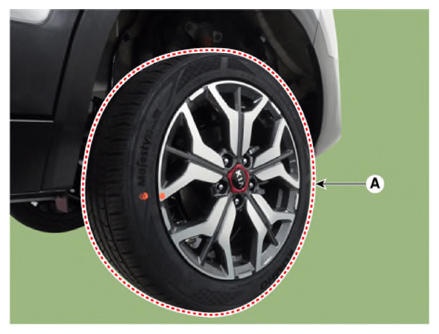

[Front]

Courtesy of KIA MOTORS AMERICA, INC.

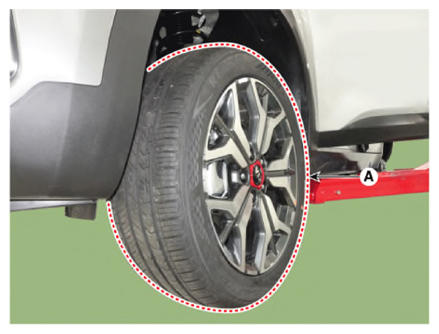

[Rear]

Courtesy of KIA MOTORS AMERICA, INC.
Tighten the hub nuts as follows.
Tightening torque:

107.9 - 127.5 N.m (11.0 - 13.0 kgf.m, 79.6 - 94.0 lb.ft)

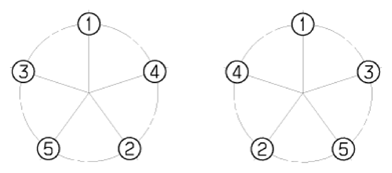

Fig 1: Hub Nuts Tightening Sequence
Courtesy of KIA MOTORS AMERICA, INC.

NOTE: When using an impact gun, final tightening torque should be checked using a torque wrench.
