Run Out Inspection

  1. Jack up the vehicle.

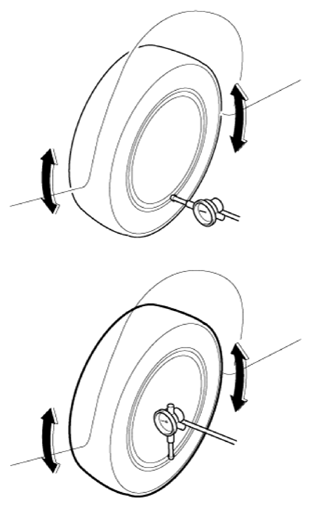

  2. Measure the wheel Run-out by using a dial indicator as shown below.
    Run-out Aluminum
    Radial mm (in.) Below 0.3 (0.0118)
    Radial mm (in.) Below 0.3 (0.0118)
  3. If measured value exceeds the standard value, replace the wheel.
    G13481400Courtesy of KIA MOTORS AMERICA, INC.
