Repair Procedures: Installation

Install in the reverse order of removal.

NOTE:

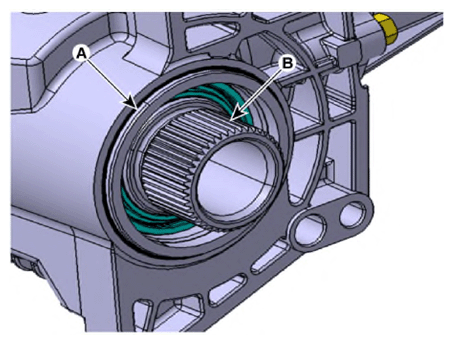

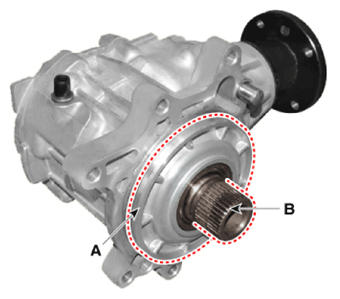

Be careful not to damage the O-ring (A). If the O-ring is damaged, replace with a new one.

Smear and cover splines (B) with molybdenum type high pressure grease.

GREASE: GREASE SLP-1 or equivalent

[Gasoline T 1.6]

Courtesy of KIA MOTORS AMERICA, INC.

[Gasoline 2.0]

Courtesy of KIA MOTORS AMERICA, INC.

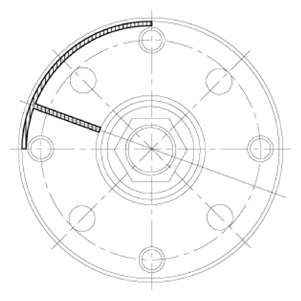

Install the propeller shaft to be near runout marking (Transfer assembly 1ea, propeller shaft 1ea) each other.

Courtesy of KIA MOTORS AMERICA, INC.
