Repair Procedures: Replacement

Remove the under cover.
G 1.6 T-GDI GAMMA (Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ")

G 2.0 MPI NU (Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ")

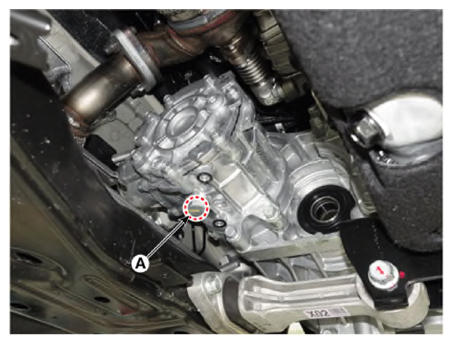

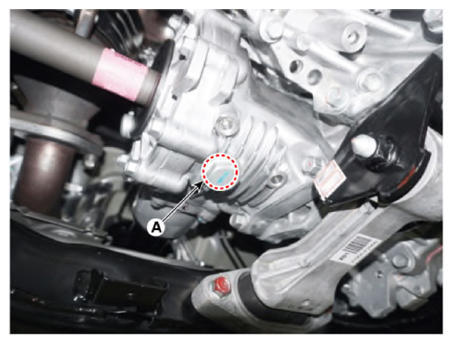

Reinstall oil drain plug after loosening the oil drain plug (A) and drain the transfer oil.
Tightening torque:

39.2 - 58.8 N.m (4.0 - 6.0 kgf.m, 28.9 - 43.4 lb-ft)

[Gasoline T 1.6]

Courtesy of KIA MOTORS AMERICA, INC.

[Gasoline 2.0]

Courtesy of KIA MOTORS AMERICA, INC.

NOTE: Do not reuse the used oil drain gasket.

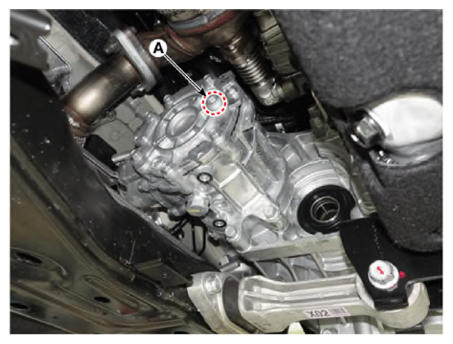

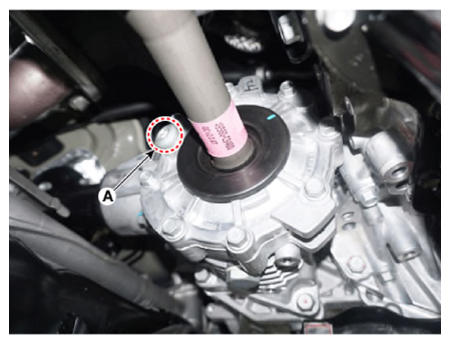

Inject oil after removing the filler plug (A).
Specification:

Hypoid gear oil API GL-5, SAE 75W/85 (SK HCT-5 75W/85 or equivalent)

[Gasoline T 1.6]

Courtesy of KIA MOTORS AMERICA, INC.

[Gasoline 2.0]

Courtesy of KIA MOTORS AMERICA, INC.

Tightening torque:

39.2 - 58.8 N.m (4.0 - 6.0 kgf.m, 28.9 - 43.4 lb-ft)

[Gasoline T 1.6]

Courtesy of KIA MOTORS AMERICA, INC.

[Gasoline 2.0]

Courtesy of KIA MOTORS AMERICA, INC.

NOTE: Do not reuse the used filler plug gasket.
Install the under cover.
G 1.6 T-GDI GAMMA (Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ")

G 2.0 MPI NU (Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ")
