Compensation Requirement And Procedure

Simultaneous replacement of AWD ECU (Controller) and coupling
- Does not require compensation.
Replacement of coupling only

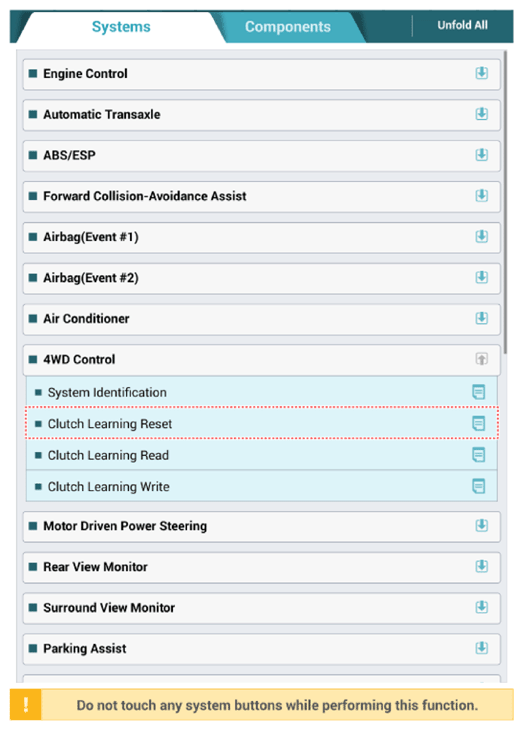

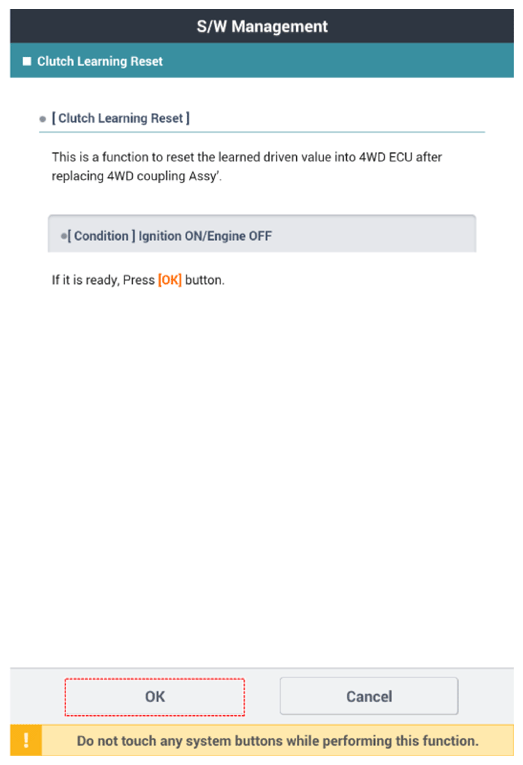

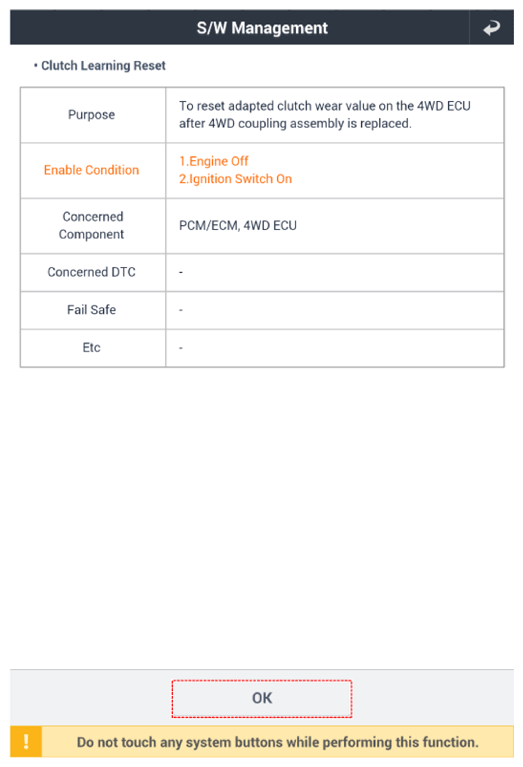

- Reset the AWD ECU's (Controller) clutch learning.
Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Replacement of AWD ECU (Controller) only

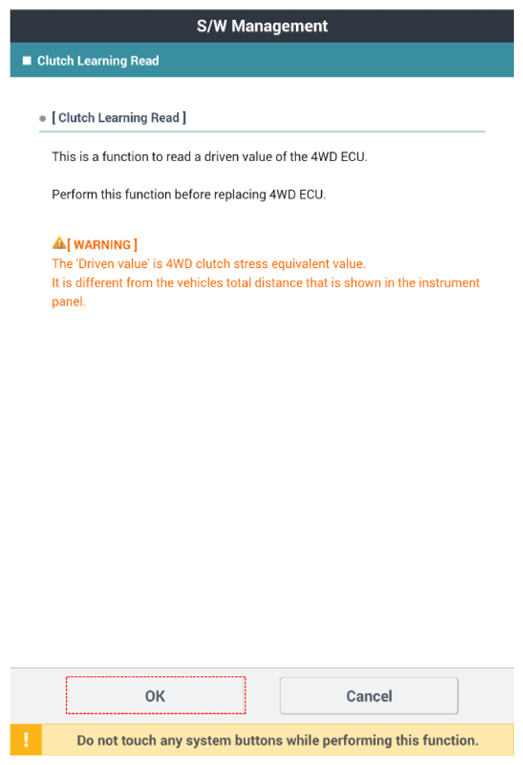

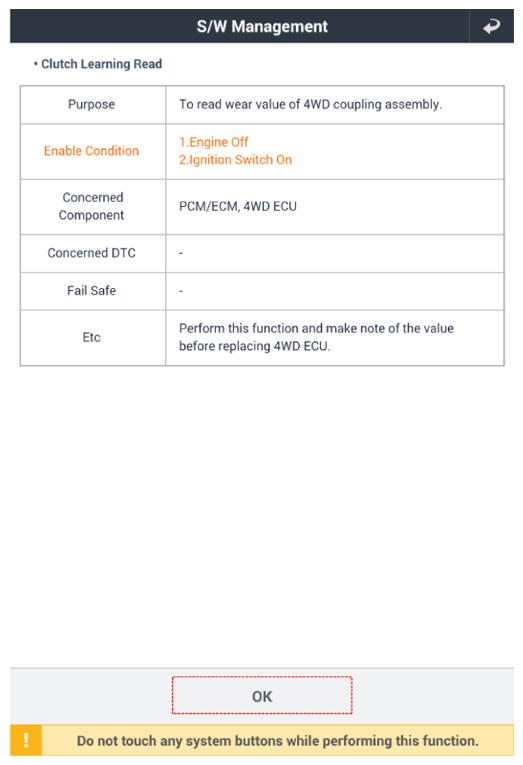

Before replacement: Check the ECU's clutch learning.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

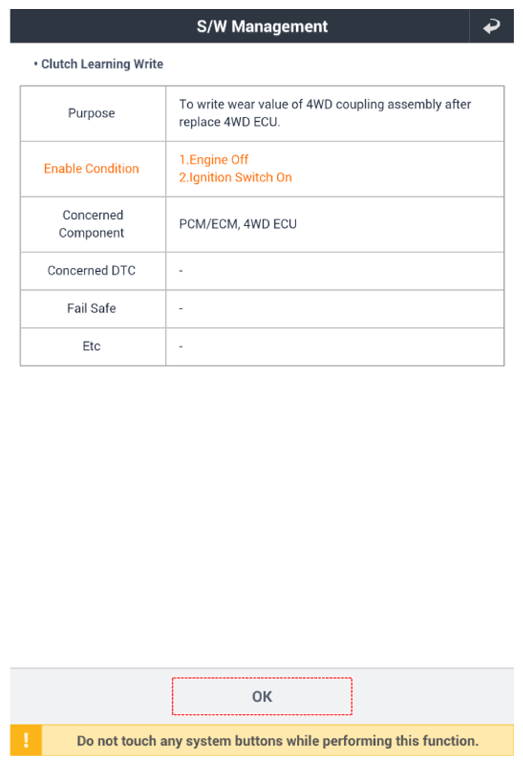

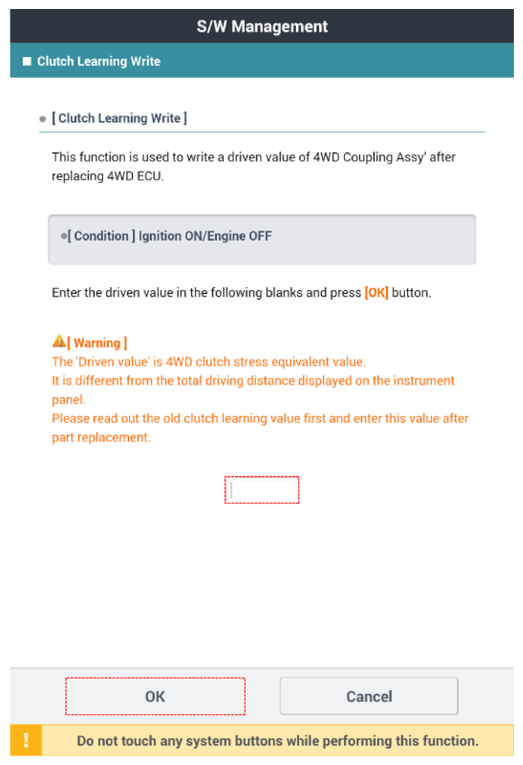

After replacement: Enter the original ECU's clutch learning into the replacement ECU.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.
