Repair Procedures: Removal

  1. Disconnect the negative battery terminal.

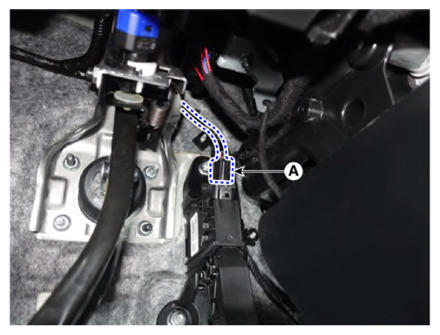

  2. Disconnect the accelerator position sensor (APS) connector (A).
    G13480657Courtesy of KIA MOTORS AMERICA, INC.

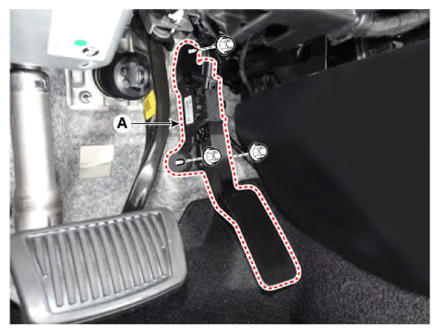

  3. Remove the accelerator pedal module (A) after loosening the mounting nuts.

    Tightening torque:

    6.9 - 10.7 N.m (0.7 - 1.1 kgf.m, 5.0 - 7.9 lb.ft)

    G13480658Courtesy of KIA MOTORS AMERICA, INC.
