Repair Procedures: Removal

Turn the ignition switch OFF and disconnect the battery negative (-) terminal.

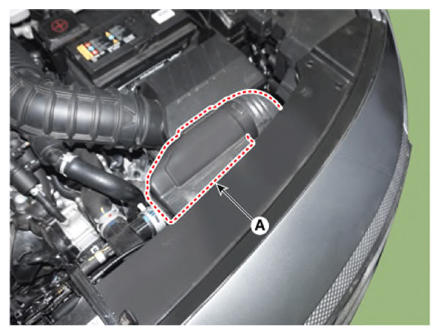

Remove the air duct (A).

Courtesy of KIA MOTORS AMERICA, INC.

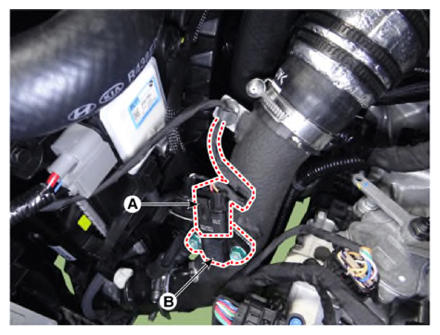

Disconnect the boost pressure sensor connector (A).
Remove the sensor (B) by loosening the mounting bolts.
Boost pressure sensor mounting bolt:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)

Courtesy of KIA MOTORS AMERICA, INC.
